ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

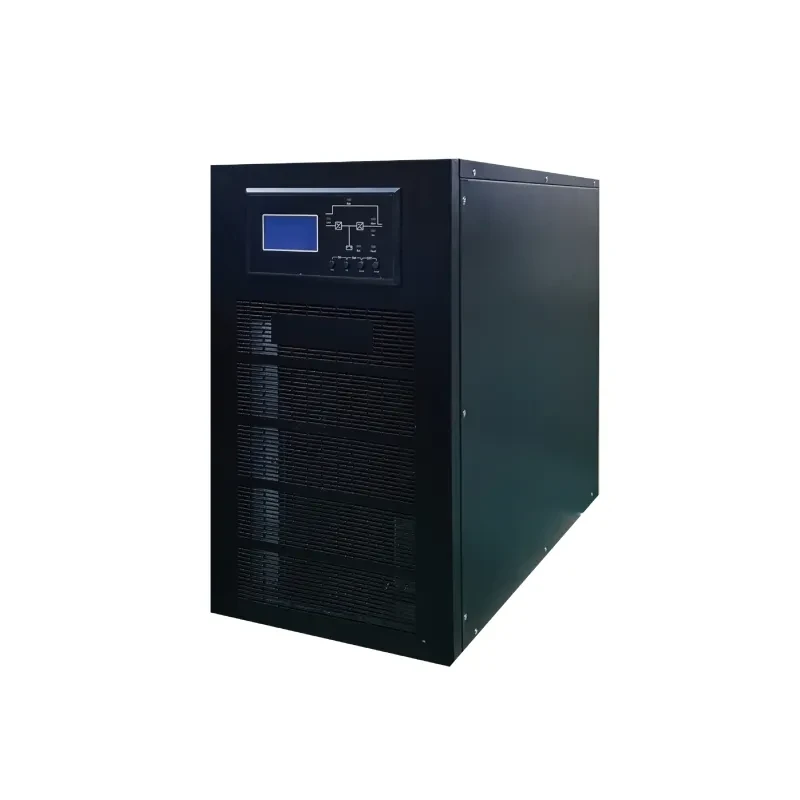

HQ11 3KVA-10KVA Single Phase Online Tower UPS is a reliable Single Phase power supplies. With an uninterruptible power system and the multi switch UPS design enhances the flexibility. The EVADA HQ11 Single Phase Online Tower UPS provides dependable 10kVA UPS support (also including 3kVA/5kVA/6kVA/10KVA), it’s ideal for industries requiring an unlimited power supply.
| Model | HQ30L | HQ60L | HQ1110L |
| Capacity | 3kVA | 6kVA | 10kVA |
| Input | |||
| Voltage Range | 1 Phase(L+N+PE) 220±15%VAC | ||
| Frequency Range | 50±5%Hz | ||
| Output | |||
| Voltage Accuracy | 1 Phase 220VAC | ||
| Stabilization Accuracy | ±1% | ||
| Frequency Range | 50Hz±0.5%(Battery) | ||
| Waveform | Pure Sine Wave | ||
| THDu | <3%(100% linear load) | ||
| Parallel Current Imbalance | ≤5% | ||
| Power Factor | 0.8 | ||
| Overload | 105%~125%, 10min; 125%~150%, 1min;>150%, swith to the bypass immediately | ||
| Switching Time | 0ms | ||
| Efficiency | 90% | ||
| Battery | |||
| Voltage | 96/192VDC | 192VDC | |
| Charging Current | 5A | ||
| System | |||
| Display | LCD+LED | ||
| Communication | RS232, optional; RS485, dry contact, SNMP | ||
| Protection | |||
| Alarm | Power outage, low battery voltage, output overload, UPS abnormality, etc. | ||
| Overload | Support | ||
| Overheat | Support | ||
| Short Circuit | Support | ||
| Overvoltage | Support | ||
| Undervoltage | Support | ||
| Environment | |||
| Operating Temperature | 0~40℃ | ||
| Humidity | <95%(non-condensing) | ||
| Noise | <55dB@1m | ||
| Physical | |||
| W*D*H(mm) | 235*550*520 | 310*660*750 | |
| Weight(kg) | 35 | 52 | 101 |
| *Specifications are subject to change without prior notice | |||
