HQ-M Series UPS is the latest industry-leading fully digital uninterruptible power supply product launched by our company. The system adopts a fully modular design, with a capacity configuration of 200-300kVA. It is simple to expand, easy to maintain, and has high cost performance and availability. It is ideal for large and medium-sized data computer rooms. ideal configuration.
ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS

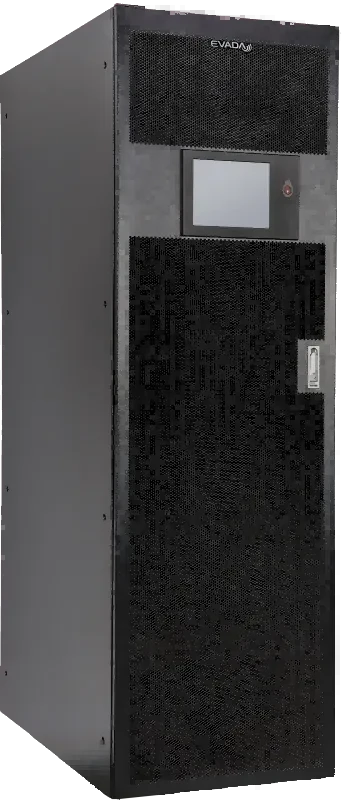

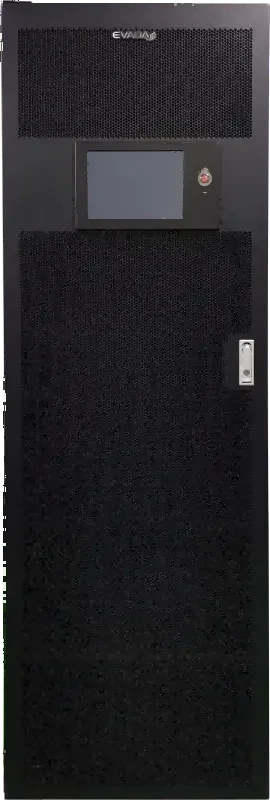

EVADA HQ-M Three Phase Modular UPS, with a 25kVA UPS capacity (available in the range of 10kVA to 300kVA) is a versatile solution. This modular online UPS, featuring a double conversion design, serves as a perfect back UPS for various applications. The EVADA HQ-M Modular UPS combines double conversion online UPS capability and 3 phase modular UPS scalability, offers easy expansion and customization.
SPECIFICATION
| Model | HQ-M80 | HQ-M100 | HQ-M140 | HQ-M175 | HQ-M240 | HQ-M300 |
| Rated Capacity | 80kVA | 100kVA | 140kVA | 175kVA | 240kVA | 300kVA |
| Power Module Capacity | 20kVA | 25kVA | 20kVA | 25kVA | 20kVA | 25kVA |
| Power Module Quantity | 4 | 7 | 12 | |||
| Input | ||||||
| Wiring Method | 3 Phase+N+PE | |||||
| Rated Voltage | 380/400/415VAC(line-line) | |||||
| Rated Frequency | 50/60Hz | |||||
| Voltage Range | 304VAC~478VAC(line-line) full load; 304VAC~228VAC(line-line), loading derating linearly from 100% to 80% | |||||
| Frequency Range | 40Hz~70Hz | |||||
| Power Factor | >0.99 | |||||
| THDi | <3%(linear full load);<5%(non-linear full load) | |||||
| Bypass | ||||||
| Rated Voltage | 380/400/415VAC(line voltage) | |||||
| Voltage Range | Factory setting -20%~+15%; settable, upper limit:+10%,+15%,+20%,+25%; lower limit:-10%,-15%,-20%,-30%,-40% | |||||
| Frequency Range | Rated frequency 50/60Hz;frequency range can be set ±0.5Hz, ±1Hz, ±2Hz, ±3Hz, ±10Hz(by default) | |||||
| Overload Capacity | 110% for long run; >150% for 200ms | |||||
| Battery | ||||||
| Battery Voltage | ±192VDC(360~528VDC;30~44 units settable, defaulted by 32 units) | |||||
| Output | ||||||
| Rated Voltage | 380/400/415VAC(line voltage) | |||||
| Rated Frequency | 50/60Hz | |||||
| Power Factor | 1 | |||||
| Voltage Accuracy | ≤±1.0%@balanced load;≤±5.0%@unbalanced load | |||||
| Frequency Accuracy | 50/60Hz±0.01% | |||||
| Frequency Tracking Range | Settable, ±0.5Hz~±5Hz;±3Hz | |||||
| THDu | ≤2%(100% linear load),≤4%(nonlinear load) | |||||
| Three-phase Phase Accuracy | 120°±1° | |||||
| Crest Factor | 3：1 | |||||
| Overload | <105%, long run; <110%, 60mins; 110~125%, 10mins;>125~150%, 1mins;>150%, 200ms | |||||
| System | ||||||
| System Efficiency | ≥96%@double conversion mode,≥99%@ECO mode | |||||
| Display | 7" touch screen+LCD | |||||
| Wiring | Bottom in | Top in and bottom in | Top in | |||
| Standard | IEC62040-1-1;IEC62040-2;IEC62040-3 | |||||
| Protection Class | IP20 | |||||
| Feeder Protection | Standard:isolating switch, optional:fuse | |||||
| Communication | RS232/RS485/SNMP(optional)/Dry contact card(optional) | |||||
| Optional | Dust-proof net, lightning protection module, LBS cable, earthquake-proof components, temperature and humidity sensor | |||||
| Working Condition | Temperature:0~40℃;humidity: 0~95℃(no condensation) | |||||
| Noise | <65dB@1 meter | |||||
| Altitude | <1000 meters, no derating,>1000 meters, derating 1% if every 100 meters increased | |||||
| Cabinet Type | 4 Modules | 7 Modules | 12 Modules | |||
| Size | ||||||
| System W*D*H(mm) | 600*850*1200 | 600*850*1600 | 600*1010*2000 | |||
| Module W*D*H(MM) | 440*690*86(2U) | |||||
| Weight | ||||||
| System(kg) | 145 | 210 | 239 | |||
| Module(kg) | 24(20kVA), 25(25kVA) | |||||
