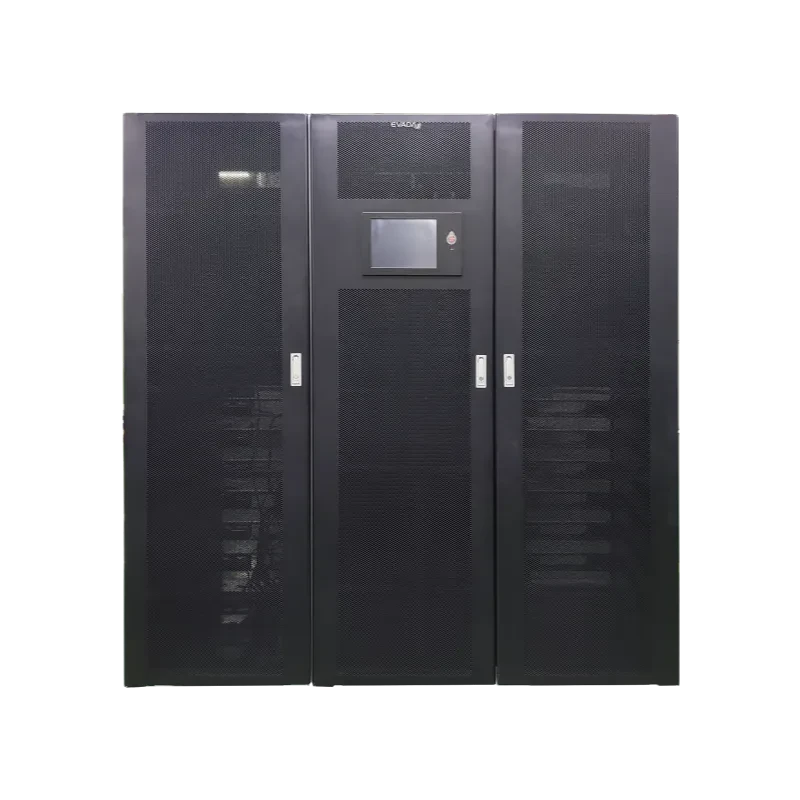

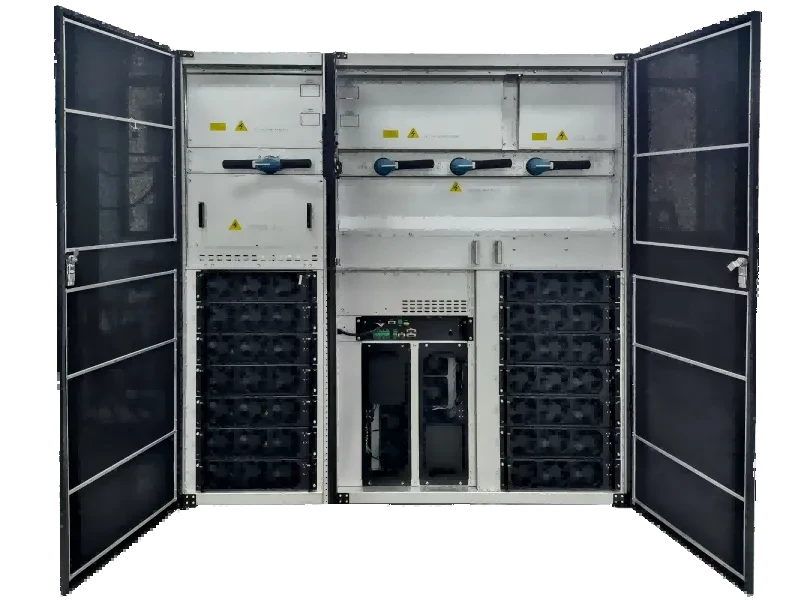

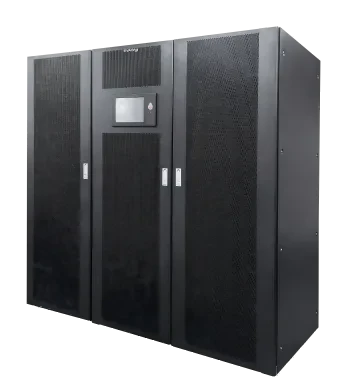

HQ-M 800kVA, 3 Phase Input, 3 Phase Output
Modular UPS 800KVA can be widely used in postal communications, financial securities, government agencies, energy and chemical industry, transportation, industrial and commercial taxation, medical and health, national defense and military and other electrical equipment that require reliable power supply.
ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
EVADA Modular UPS 800kVA is the latest industry-leading fully digital uninterruptible power supply product launched by our company. The three phase UPS system adopts a fully modular design, with a capacity configuration of 20-1200KVA. It is simple to expand, easy to maintain, and has high cost performance and availability. The high power UPS design complies with the European and international standards.
SPECIFICATION
| Model | HQ-M200 | HQ-M300 | HQ-M400 | HQ-M500 | HQ-M600 | HQ-M800 | |||||||||||
| Capacity | 200kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | |||||||||||
| Cabinet Type | 5(4+1) Modules | 7(6+1/5+2) Modules | 12(8+4) Modules | 12(10+2) Modules | 12 Modules | 14 Modules | |||||||||||
| Power Module Capacity | 50/60kVA | 60kVA | |||||||||||||||
| Input | |||||||||||||||||
| Rated Voltage | 3 Phase+N+PE 380/400/415VAC(Line voltage) | ||||||||||||||||
| Rated Frequency | 50/60Hz | ||||||||||||||||
| Voltage Range (Full Load) | 304～478VAC (line-line) full load; 304 ~228 VAC (line-line) load derating linearly from 100% to 80% | ||||||||||||||||
| Frequency Range | 40 ~ 70Hz | ||||||||||||||||
| Power Factor | >0.99 | ||||||||||||||||
| THDi | ＜3％(100% linear load）；＜5％(100% non-linear load） | ||||||||||||||||
| Bypass | |||||||||||||||||
| Rated Voltage | 380/400/415VAC(Line voltage) | ||||||||||||||||
| Voltage Range | Default: -20% ～ +15%；configurable, upper limit: +10%, +15%, +20%, +25%；lower limit: -10%, -15%, -20%, -30%, -40% | ||||||||||||||||
| Battery | |||||||||||||||||
| Voltage | ±240VDC(384~528VDC, 32-44 units configurable, default: 40 units) | ||||||||||||||||
| Output | |||||||||||||||||
| Rated Voltage | 380V/400V/415V(Line voltage) | ||||||||||||||||
| Rated Frequency | 50/60Hz | ||||||||||||||||
| Power Factor | 1 | ||||||||||||||||
| Voltage Accuracy | ≤±1.0% @ balanced load ；≤±5.0% @ unbalanced load | ||||||||||||||||
| Frequency Accuracy | 50/60Hz ± 0.1% | ||||||||||||||||
| Frequency Tracking Range | ±0.5Hz ~ ±5Hz, configurable, default: ±3Hz | ||||||||||||||||
| THDu | ≤2%(100% linear load), ≤4%(nonlinear load) | ||||||||||||||||
| Three-Phase Accuracy | 120° ± 1° | ||||||||||||||||
| Crest Factor | 3:1 | ||||||||||||||||
| Overload | ≤105％，long run； 105% ~ 110％，60min； 110 ～ 125％，10min；125 ～150％，1min； ＞150％，200ms | ||||||||||||||||
| System | |||||||||||||||||
| Efficiency | 96.5% | ||||||||||||||||
| Display | 10.4” Color touch screen +LED | ||||||||||||||||
| Wiring | Support top in and bottom in | Top in | |||||||||||||||
| Standard | IEC62040-1-1; IEC62040-2; IEC62040-3 | ||||||||||||||||
| Optional | Lightning protection module, dustproof net, load break switch cable, seismic kit | ||||||||||||||||
| Protection Class | IP20 | ||||||||||||||||
| Communication | RS232/RS485, optional: SNMP/dry contact | ||||||||||||||||
| Operating Temperature | 0 ~ 40°C | ||||||||||||||||
| Humidity | 0 ~ 95%(Non-condensing) | ||||||||||||||||
| Altitude | ＜1000M no derate, ＞1000m derate 1% per 100m | ||||||||||||||||
| Noise | ＜ 70dB @ 1m | ||||||||||||||||
| Size | |||||||||||||||||
| System W x D x H(mm) | 600 × 850 × 2000 | 600 × 1100 × 2000 | 1000 × 1100 × 2000 | 1800 × 850 × 2000 | |||||||||||||
| Module W x D x H(mm) | 440 x 720 x 130(3U) | ||||||||||||||||
| Weight | |||||||||||||||||
| System(kg） | 190 | 286.5 | 372.5 | 610 | |||||||||||||
| Module(kg） | 33.5(50kVA), 35(60kVA) | ||||||||||||||||
| * Specifications subject to change without notice. | |||||||||||||||||
