HQ-MR 80KVA-100KVA is the latest industry-leading fully digital uninterruptible power supply product launched by our company. The system adopts a fully modular design, with a capacity configuration of 80KVA-100KVA. It is simple to expand, easy to maintain, and has high cost performance and availability. It is ideal for large and medium-sized data computer rooms. ideal configuration.

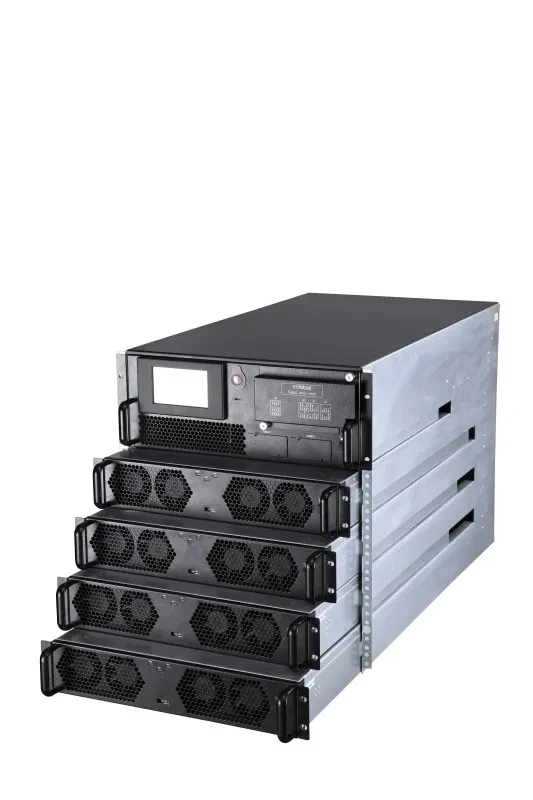

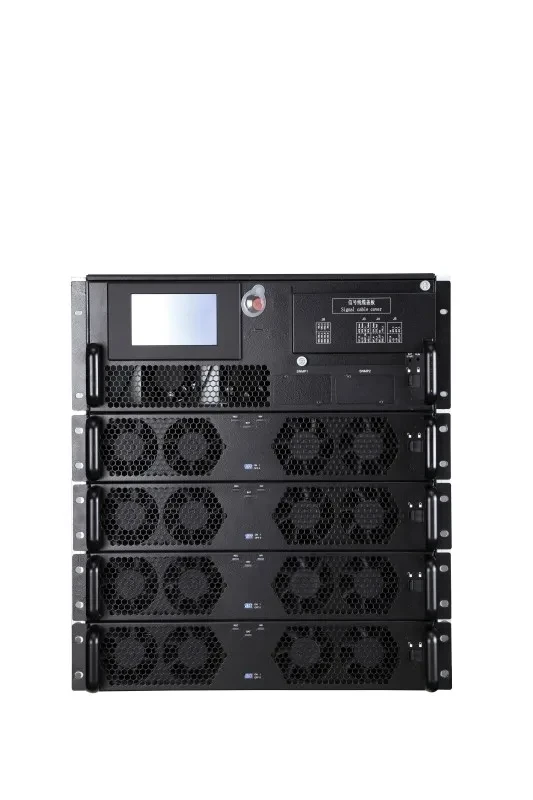

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
The EVADA HQ-MR Online Rackmount Modular UPS is engineered for online power delivery in a compact rackmount design, optimizing space efficiency. With a robust 20kVA capacity, this UPS is available in scalable configurations ranging from 80kVA to 100kVA, providing reliable and efficient power management that adapts to diverse and evolving power requirements.
Applications: data centers, healthcare, finance, telecom, commercial and industrial field, process control equipment, etc.
SPECIFICATION
| Model | HQ-M80R | HQ-M100R |
| Rated Capacity | 80kVA | 100kVA |
| Power Module Capacity | 20kVA | 25kVA |
| Power Module Quantity | 4 | |
| Input | ||
| Wiring Method | 3 Phase+N+PE | |
| Rated Voltage | 380/400/415VAC(line-line) | |
| Rated Frequency | 50/60Hz | |
| Voltage Range | 305VAC~477VAC(line-line)full load;304VAC~228VAC(line-line)load derating linearly from 100% to 80% | |
| Frequency Range | 40Hz~70Hz | |
| Power Factor | >0.99 | |
| THDi | <3%(linear full load);<5%(non-linear full load) | |
| Bypass | ||
| Rated Voltage | 380/400/415VAC(line voltage) | |
| Voltage Range | Factory setting -20%~+15%; settable, upper limit: +10%,+15%,+20%,+25%; lower limit: -10%, -15%, -20%, -30%, -40% | |
| Frequency Range | Rated frequency 50/60Hz; frequency range can be set ±0.5Hz,±1Hz, ±2Hz, ±3Hz, ±10%Hz(by default) | |
| Overload Capacity | 110% for long run;>150% for 200ms | |
| Battery | ||
| Battery Voltage | ±192VDC(360~528VDC; 30~44 units settable, defaulted by 32 units) | |
| Output | ||
| Rated Voltage | 380/400/415VAC(line-line) | |
| Rated Frequency | 50/60Hz | |
| Power Factor | 1 | |
| Voltage Accuracy | ≤±1.0%@ balanced load; ≤±5.0%@ unbalanced load | |
| Frequency Accuracy | 50/60Hz±0.01% | |
| Frequency Tracking Range | Settable, ±0.5HZ~±5Hz;±3Hz | |
| THDu | ≤2%(100% linear load), ≤4%(nonlinear load) | |
| Three-phase Phase Accuracy | 120°±1° | |
| Crest Factor | 3:1 | |
| Overload | <105%, long run;<110%, 60mins; 110~125%, 10mins;>125~150%, 1min;>150%, 200ms | |
| System | ||
| System Efficiency | 96%@ double conversion mode, >99%@ECO mode | |
| Display | 5" LCD touch screen | |
| Wiring | Bottom in | |
| Language | Chinese, English; optional: Russian, Italian, Spanish, German, etc. | |
| Protection Class | IP20 | |
| Communication | RS232/RS485/SNMP card(optional)/dry contact(optional) | |
| Working Condition | Temperature: 0~40℃; humidity: 0~95%(no condensation) | |
| Noise | <60dB@1 meter | |
| Altitude | <1000 meters, derating, >1000 meters, derating 1% if every 100 meters increased | |
| Cabinet Type | 4 Modules | |
| Size | ||
| System W*D*H(mm) | 482.6*800*531(12U) | |
| Module W*D*H(mm) | 440*690*86(2U) | |
| Weight | ||
| System(kg) | 64 | |
| Module(kg) | 24(20kVA), 25(25kVA) | |
| *Specifications are subject to change without prior notice. | ||
