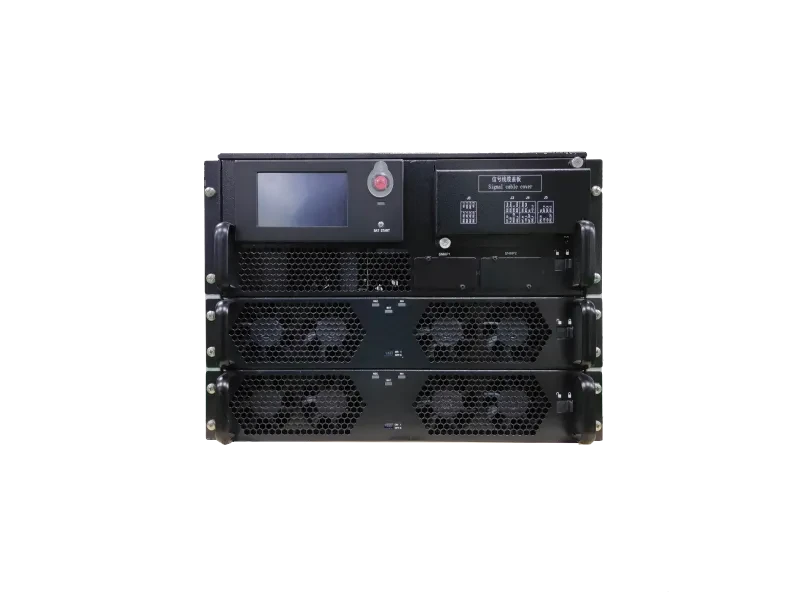

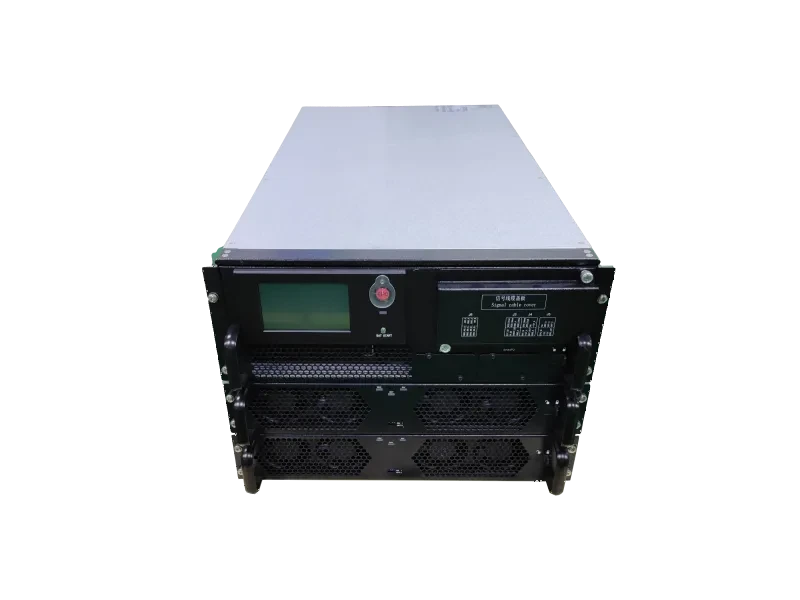

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
The EVADA Rackmount modular UPS 40/50KVA is the ideal solution for businesses seeking reliable, scalable, and efficienct power protection. This modular online UPS is designed to meet the demanding power requirements of critical IT infrastructure, offering enhanced flexibility and easy scalability.
With its 50KVA UPS capacity, this three-phase modular UPS provides stable and uninterrupted power, ensuring the safety of your devices during power disturbances. The modular UPS systems allow you to add or remove modules based on your power needs, making it efficienct solution for growing businesses.
The uninterruptible power system integrates advanced features such as parallel capability, hot-swappable modules, and remote monitoring, providing peace of mind in managing your power needs. Whether you're operating data centers, telecommunications equipment, or industrial applications, EVADA's modular online UPS offers superior performance and reliability.
SPECIFICATION
| Model | HQ-M40R | HQ-M50R |
| Rated Capacity | 40kVA | 50kVA |
| Power Module Capacity | 20kVA | 25kVA |
| Power Module Quantity | 2 | |
| Input | ||
| Wiring Method | 3 Phase+N+PE | |
| Rated Voltage | 380/400/415VAC(line-line) | |
| Rated Frequency | 50/60Hz | |
| Voltage Range | 305VAC~477VAC(line-line)full load;304VAC~228VAC(line-line)load derating linearly from 100% to 80% | |
| Frequency Range | 40Hz~70Hz | |
| Power Factor | >0.99 | |
| THDi | <3%(linear full load);<5%(non-linear full load) | |
| Bypass | ||
| Rated Voltage | 380/400/415VAC(line voltage) | |
| Voltage Range | Factory setting -20%~+15%; settable, upper limit: +10%,+15%,+20%,+25%; lower limit: -10%, -15%, -20%, -30%, -40% | |
| Frequency Range | Rated frequency 50/60Hz; frequency range can be set ±0.5Hz,±1Hz, ±2Hz, ±3Hz, ±10%Hz(by default) | |
| Overload Capacity | 110% for long run;>150% for 200ms | |
| Battery | ||
| Battery Voltage | ±192VDC(360~528VDC; 30~44 units settable, defaulted by 32 units) | |
| Output | ||
| Rated Voltage | 380/400/415VAC(line-line) | |
| Rated Frequency | 50/60Hz | |
| Power Factor | 1 | |
| Voltage Accuracy | ≤±1.0%@ balanced load; ≤±5.0%@ unbalanced load | |
| Frequency Accuracy | 50/60Hz±0.01% | |
| Frequency Tracking Range | Settable, ±0.5HZ~±5Hz;±3Hz | |
| THDu | ≤2%(100% linear load), ≤4%(nonlinear load) | |
| Three-phase Phase Accuracy | 120°±1° | |
| Crest Factor | 3:1 | |
| Overload | <105%, long run;<110%, 60mins; 110~125%, 10mins;>125~150%, 1min;>150%, 200ms | |
| System | ||
| System Efficiency | 96%@ double conversion mode, >99%@ECO mode | |
| Display | 5" LCD touch screen | |
| Wiring | Bottom in | |
| Language | Chinese, English; optional: Russian, Italian, Spanish, German, etc. | |
| Protection Class | IP20 | |
| Communication | RS232/RS485/SNMP card(optional)/dry contact(optional) | |
| Working Condition | Temperature: 0~40℃;humidity: 0~95%(no condensation) | |
| Noise | <60dB@1 meter | |
| Altitude | <1000 meters, derating, >1000 meters, derating 1% if every 100 meters increased | |
| Cabinet Type | 2 Modules | |
| Size | ||
| System W*D*H(mm) | 482.6*800*353.2(8U) | |
| Module W*D*H(mm) | 440*690*86(2U) | |
| Weight | ||
| System(kg) | 56 | |
| Module(kg) | 24(20kVA),25(25kVA) | |
| *Specifications are subject to change without prior notice. | ||
