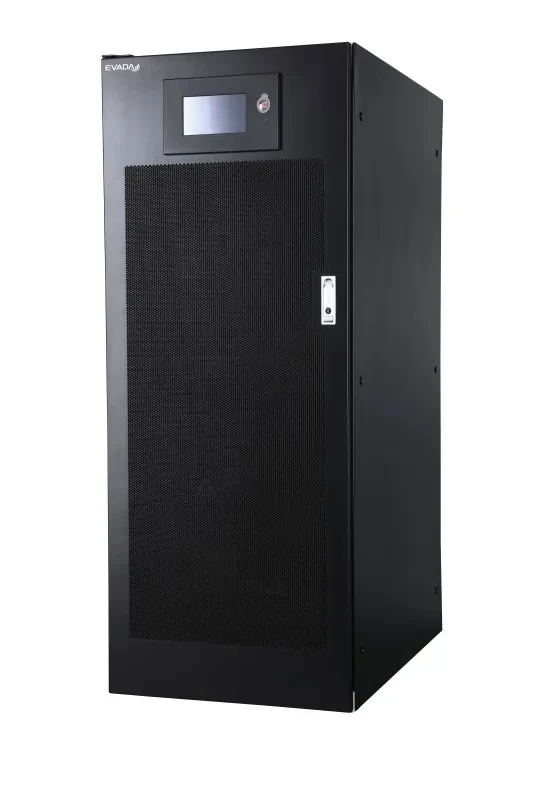

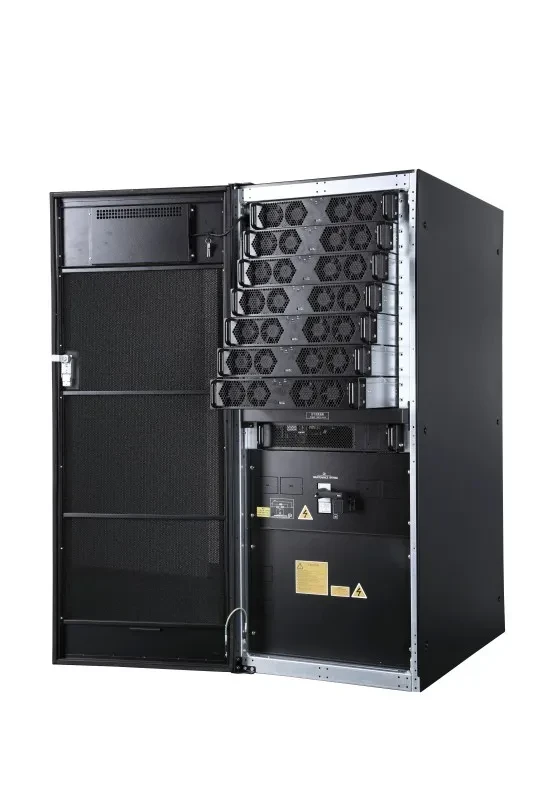

HQ-M 60KVA-120KVA is the latest industry-leading fully digital uninterruptible power supply product launched by our company. The system adopts a fully modular design, with a capacity configuration of 60-120kVA. It is simple to expand, easy to maintain, and has high cost performance and availability. It is ideal for large and medium-sized data computer rooms. ideal configuration.
ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
This scalable UPS can be widely used in postal communications, financial securities, government agencies, energy and chemical industry, transportation, industrial and commercial taxation, medical and health, national defense and military and other electrical equipment that require reliable power supply.
SPECIFICATION
| Model | HQ-M80 | HQ-M100 | HQ-M140 | HQ-M175 | HQ-M240 | HQ-M300 |
| Rated Capacity | 80kVA | 100kVA | 140kVA | 175kVA | 240kVA | 300kVA |
| Power Module Capacity | 20kVA | 25kVA | 20kVA | 25kVA | 20kVA | 25kVA |
| Power Module Quantity | 4 | 7 | 12 | |||
| Input | ||||||
| Wiring Method | 3 Phase+N+PE | |||||
| Rated Voltage | 380/400/415VAC(line-line) | |||||
| Rated Frequency | 50/60Hz | |||||
| Voltage Range | 304VAC~478VAC(line-line) full load; 304VAC~228VAC(line-line), loading derating linearly from 100% to 80% | |||||
| Frequency Range | 40Hz~70Hz | |||||
| Power Factor | >0.99 | |||||
| THDi | <3%(linear full load);<5%(non-linear full load) | |||||
| Bypass | ||||||
| Rated Voltage | 380/400/415VAC(line voltage) | |||||
| Voltage Range | Factory setting -20%~+15%; settable, upper limit:+10%,+15%,+20%,+25%; lower limit:-10%,-15%,-20%,-30%,-40% | |||||
| Frequency Range | Rated frequency 50/60Hz;frequency range can be set ±0.5Hz, ±1Hz, ±2Hz, ±3Hz, ±10Hz(by default) | |||||
| Overload Capacity | 110% for long run; >150% for 200ms | |||||
| Battery | ||||||
| Battery Voltage | ±192VDC(360~528VDC;30~44 units settable, defaulted by 32 units) | |||||
| Output | ||||||
| Rated Voltage | 380/400/415VAC(line voltage) | |||||
| Rated Frequency | 50/60Hz | |||||
| Power Factor | 1 | |||||
| Voltage Accuracy | ≤±1.0%@balanced load;≤±5.0%@unbalanced load | |||||
| Frequency Accuracy | 50/60Hz±0.01% | |||||
| Frequency Tracking Range | Settable, ±0.5Hz~±5Hz;±3Hz | |||||
| THDu | ≤2%(100% linear load),≤4%(nonlinear load) | |||||
| Three-phase Phase Accuracy | 120°±1° | |||||
| Crest Factor | 3：1 | |||||
| Overload | <105%, long run; <110%, 60mins; 110~125%, 10mins;>125~150%, 1mins;>150%, 200ms | |||||
| System | ||||||
| System Efficiency | ≥96%@double conversion mode,≥99%@ECO mode | |||||
| Display | 7" touch screen+LCD | |||||
| Wiring | Bottom in | Top in and bottom in | Top in | |||
| Standard | IEC62040-1-1;IEC62040-2;IEC62040-3 | |||||
| Protection Class | IP20 | |||||
| Feeder Protection | Standard:isolating switch, optional:fuse | |||||
| Communication | RS232/RS485/SNMP(optional)/Dry contact card(optional) | |||||
| Optional | Dust-proof net, lightning protection module, LBS cable, earthquake-proof components, temperature and humidity sensor | |||||
| Working Condition | Temperature:0~40℃;humidity: 0~95℃(no condensation) | |||||
| Noise | <65dB@1 meter | |||||
| Altitude | <1000 meters, no derating,>1000 meters, derating 1% if every 100 meters increased | |||||
| Cabinet Type | 4 Modules | 7 Modules | 12 Modules | |||
| Size | ||||||
| System W*D*H(mm) | 600*850*1200 | 600*850*1600 | 600*1010*2000 | |||
| Module W*D*H(MM) | 440*690*86(2U) | |||||
| Weight | ||||||
| System(kg) | 145 | 210 | 239 | |||
| Module(kg) | 24(20kVA), 25(25kVA) | |||||
