Rack Mount Modular UPS 40KVA-180KVA

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS

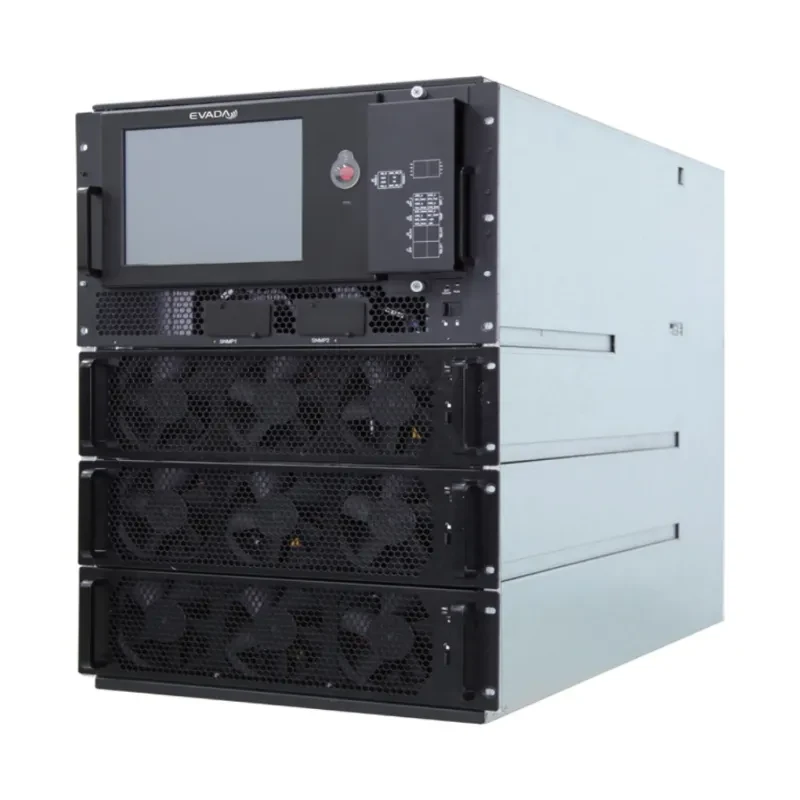

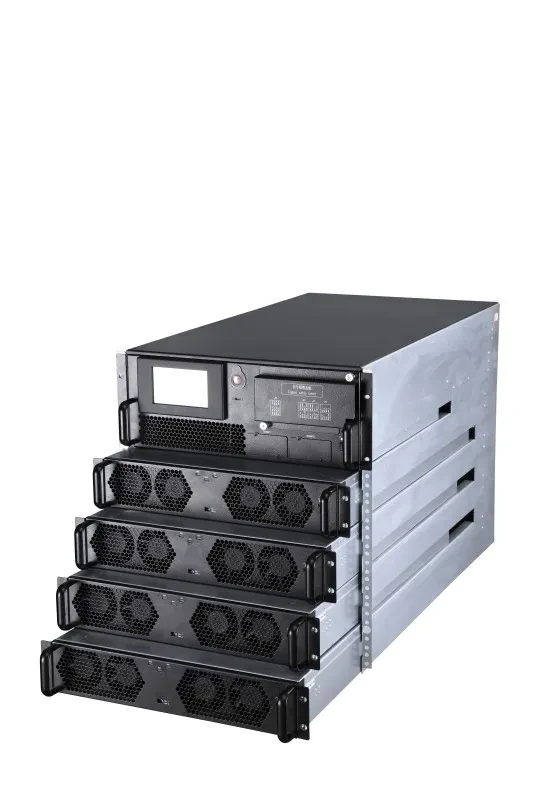

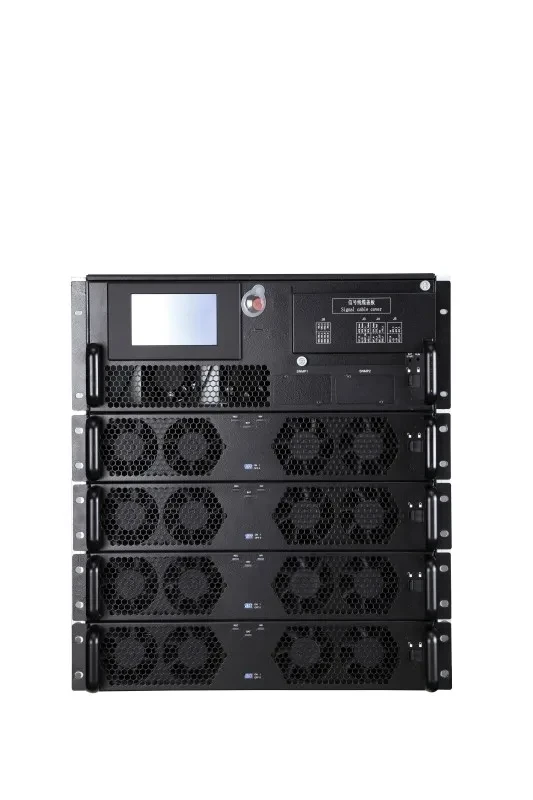

HQ-MR 40KVA-180KVA Online Rackmount Modular UPS featuring modular UPS systems. This rackmount UPS, designed for online power delivery, the EVADA HQ-MR's rack UPS design optimizes space efficiency, offering scalability to adapt to diverse power requirements. With a robust 50kVA UPS capacity (available in the range of 40kVA to 180kVA), this rackmount UPS system ensures reliable and efficient power management for your evolving needs.

Applications: Government, military, telecom, power, transportation, broadcasting, taxation, finance, healthcare, education, petrochemical, Internet, etc.

SPECIFICATION

Model	HQ-M40R	HQ-M50R	HQ-M80R	HQ-M100R	HQ-M120R	HQ-M150R	HQ-MR120	HQ-MR150	HQ-MR180
Rated Capacity	40kVA	50kVA	80kVA	100kVA	125kVA	150kVA	40kVA	50kVA	60kVA
Power Module Capacity	20kVA	25kVA	20kVA	25kVA	20kVA	25kVA	120kVA/120kW	150kVA/150kW	180kVA/180kW
Power Module Quantity	2		4		6		3
Input
Wiring Method	3 Phase+N+PE						3 Phase+N+PE
Rated Voltage	380/400/415VAC(line-line)						380/400/415VAC(line-line)
Rated Frequency	50/60Hz						50/60Hz
Voltage Range	305VAC~477VAC(line-line)full load;304VAC~228VAC(line-line)load derating linearly from 100% to 80%						304~478Vac*Voltage Range(full load)
Frequency Range	40Hz~70Hz						40~70Hz
Power Factor	>0.99						>0.99
THDi	<3%(linear full load);<5%(non-linear full load)						<3%(linear full load);<5%(non-linear full load)
Bypass
Rated Voltage	380/400/415VAC(line voltage)						380/400/415VAC(line-line)
Voltage Range	Factory setting -20%~+15%; settable, upper limit: +10%,+15%,+20%,+25%; lower limit: -10%, -15%, -20%, -30%, -40%						Factory setting -20%~+15%; settable, upper limit:+10%,+15%,+20%,+25%; lower limit:-10%,-15%,-20%,-30%,-40%
Frequency Range	Rated frequency 50/60Hz; frequency range can be set ±0.5Hz,±1Hz, ±2Hz, ±3Hz, ±10%Hz(by default)						Rated frequency 50/60Hz; frequency range can be set ±0.5Hz, ±1Hz, ±2Hz, ±3Hz, ±10Hz(by default)
Overload Capacity	110% for long run;>150% for 200ms						110% for long run; >150% for 200ms
Battery
Battery Voltage	±192VDC(360~528VDC; 30~44 units settable, defaulted by 32 units)						±240VDC(384~528VDC;32~44 units settable, defaulted by 40 units)
Output
Rated Voltage	380/400/415VAC(line-line)						380/400/415VAC(line-line)
Rated Frequency	50/60Hz						50/60Hz
Power Factor	1						1
Voltage Accuracy	≤±1.0%@ balanced load; ≤±5.0%@ unbalanced load						≤±1.0%@balanced load;≤±5.0%@unbalanced load
Frequency Accuracy	50/60Hz±0.01%						50/60Hz±0.01%
Frequency Tracking Range	Settable, ±0.5HZ~±5Hz;±3Hz						Settable, ±0.5Hz~±5Hz;±3Hz
THDu	≤2%(100% linear load), ≤4%(nonlinear load)						≤2%(100% linear load),≤4%(nonlinear load)
Three-phase Phase Accuracy	120°±1°						120°±1°
Crest Factor	3:1						3：1
Overload	<105%, long run;<110%, 60mins; 110~125%, 10mins;>125~150%, 1min;>150%, 200ms						<105%, long run; <110%, 60mins; 110~125%, 10mins;>125~150%, 1mins;>150%, 200ms
System
System Efficiency	96%@ double conversion mode, >99%@ECO mode						≥96%@double conversion mode,≥99%@ECO mode
Display	5" LCD touch screen						10" LCD touch screen
Wiring	Bottom in				Back in		Back in
Language	Chinese, English; optional: Russian, Italian, Spanish, German, etc.						Chinese, Enghlish; optional: Russian, Italian, Spanish, German, etc.
Protection Class	IP20						IP20
Communication	RS232/RS485/SNMP card(optional)/dry contact(optional)						RS232/RS485/SNMP card(optional)/dry contact(optional)
Working Condition	Temperature: 0~40℃;humidity: 0~95%(no condensation)						Temperature:0~40℃;humidity: 0~95℃(no condensation)
Noise	<60dB@1 meter						<60dB@1 meter
Altitude	<1000 meters, derating, >1000 meters, derating 1% if every 100 meters increased						<1000 meters, no derating,>1000 meters, derating 1% if every 100 meters increased
Cabinet Type	2 Modules		4 Modules		6 Modules		3 Modules
Size
System W*D*H(mm)	482.6*800*353.2(8U)		482.6*800*531(12U)		482.6*900*796(18U)		482.6*850*711(16U)
Module W*D*H(mm)	440*690*86(2U)						440*720*130(3U)
Weight
System(kg)	56		64		80		66
Module(kg)	24(20kVA),25(25kVA)						32.5(40kVA)/33.5(50kVA)/35(60kVA)
*Specifications are subject to change without prior notice.
