ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

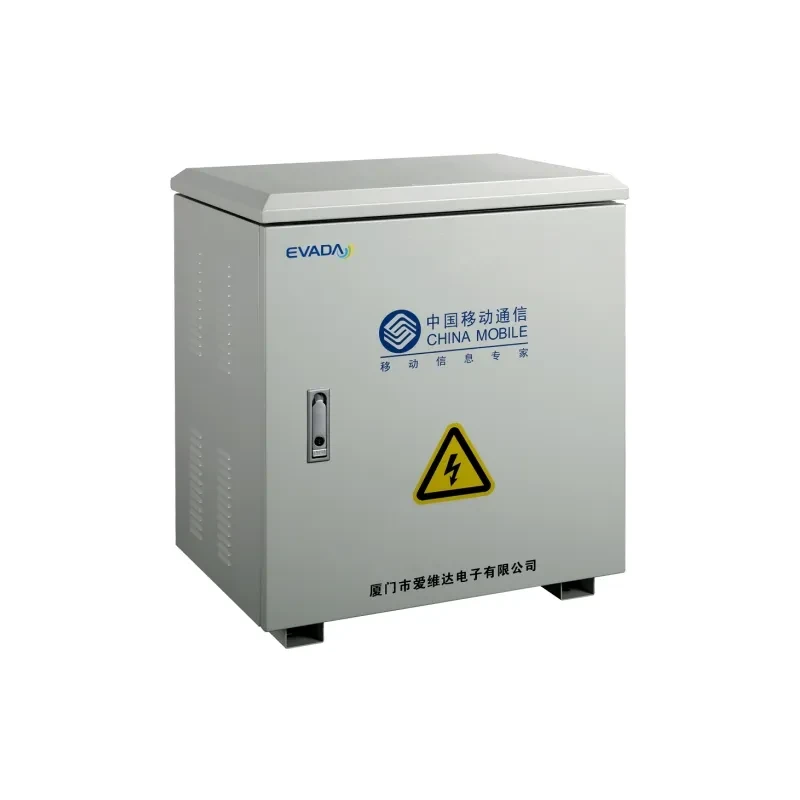

HW-DE 48V is available in both indoor and outdoor designs, which are simple and convenient to install and save space: the modular structure is adopted, and the power module, battery pack, distribution unit and cooling system all adopt modular structure, which can realize fast installation and maintenance and convenient use.
| Model | HW10DE-L50 | HW20DE-L50 | HW30DE-L50 |
| Capacity | 1kVA | 2kVA | 3kVA |
| Input | |||
| AC Voltage | 176~250VAC（configurable） | ||
| DC Voltage | 48VDC | ||
| Frequency | 50Hz ± 5% | ||
| Power Factor | ≥0.99 | ||
| Output | |||
| Rated Power | 1kVA | 2kVA | 3kVA |
| Voltage | 220VAC ± 2%（Inverter mode） | ||
| Efficiency | ≥90%（Inverter mode） | ||
| Frequency | 50Hz ± 0.25Hz（Inverter mode） | ||
| Overload | 125% rated load 1 min；150% rated load 10 sec | ||
| Power Factor | 0.8 | ||
| THDu | ≤3% (linear load under full load) | ||
| Waveform | Pure sine wave（Inverter mode） | ||
| Switching Time | ≤10ms | ||
| DC Output | |||
| Voltage | -48VDC | ||
| Current | Optional charging pad: 6A, 6A (30A panel), 30A, 10A | ||
