ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

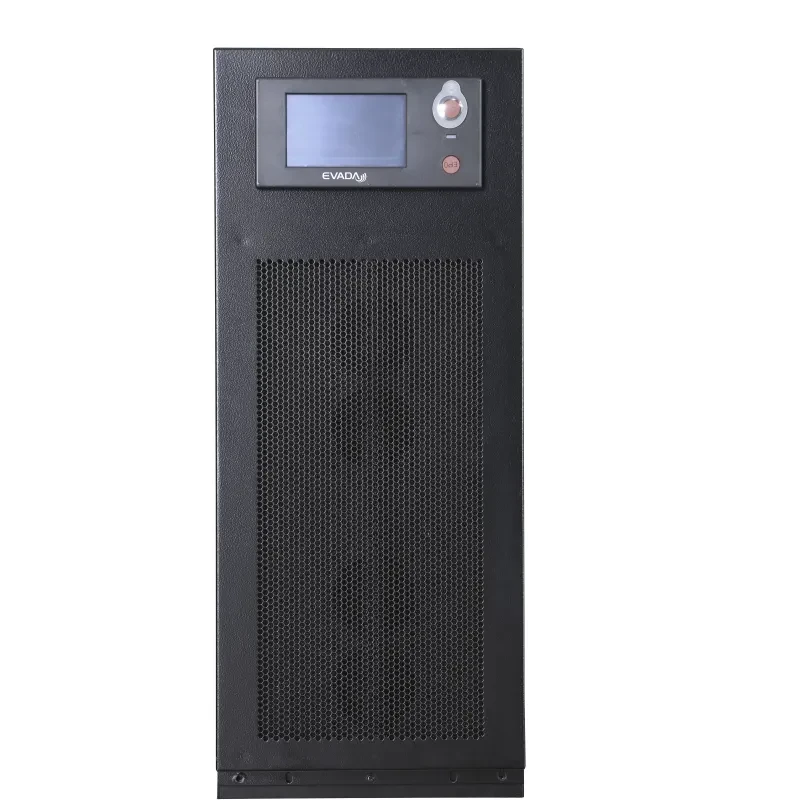

DTH11 6KVA-10KVA Single Phase Online Tower UPS, this tower UPS, available as a 10kV UPS (also including 1kVA/2kVA/6kVA/10kVA) and functions as an LED power supply, providing intuitive monitoring. The EVADA DTH11 Single Phase Online Tower UPS stands as the epitome of a single phase UPS, guaranteeing seamless transitions during outages.
| Model | DTH11-1K/KL | DTH11-2K/KL | DTH11-3K/KL | DTH11-6K/KL | DTH11-10K/KL |
| Capacity | 1kVA | 2kVA | 3kVA | 6kVA | 10kVA |
| Input | |||||
| Voltage Range | 1 Phase (L+N+PE) 110~300VAC | ||||
| Frequency Range | 40 ~ 70Hz | ||||
| Power Factor | ≥0.99 | ||||
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | ||||
| Output | |||||
| Voltage | 208/220/230/240VAC | ||||
| Voltage Accuracy | ±1% | ||||
| Frequency Range | 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | ||||
| Overload | 102%~110%, 30min; 111%~130%, 10min; 131%~150%, 30sec; ＞150%, 0.2sec | ||||
| Power Factor | 1 | ||||
| THDu | ≤2% @ (100% linear load)；≤5% @ (100% nonlinear load) | ||||
| Switching Time | 0ms | ||||
| Efficiency | |||||
| Inverter Mode | 94.5% | 95.5% | |||
