ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

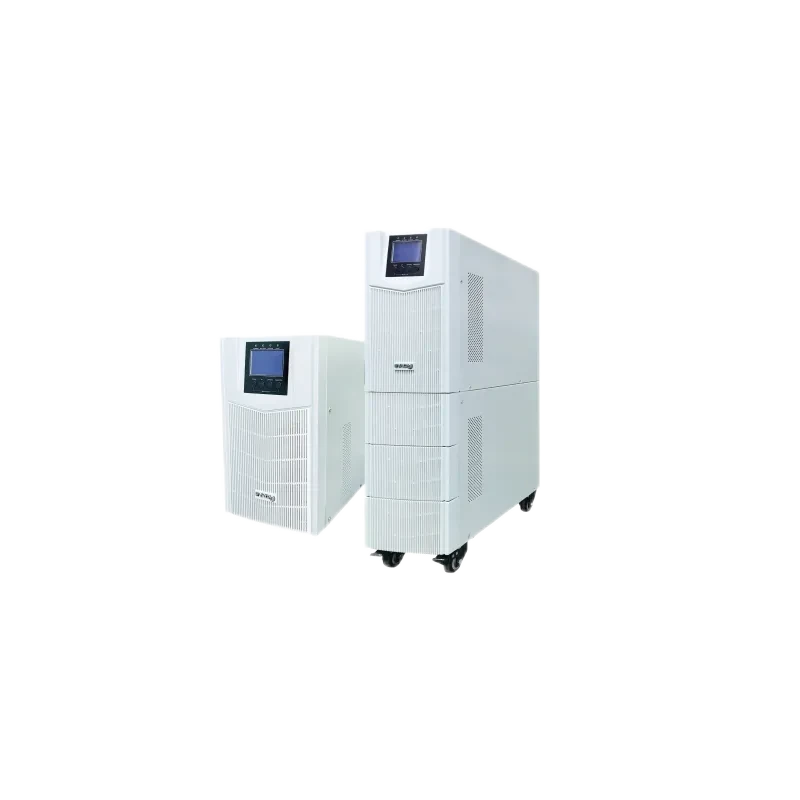

The DTL series UPS is suitable for a wide range of industries, including home PCs, computer rooms, communications, finance, securities, transportation, and healthcare. Multiple safeguards ensure that the DTL Series UPS can continuously and stably supply clean, safe power in various environments. Advanced technology brings significant reduction in energy consumption and operating cost.
| Model | DTL11-3K | DTL11-3KL | DTL11-6KL | DTL11-10KL |
| Capacity | 3kVA | 3kVA | 6kVA | 10kVA |
| Input | ||||
| Input Wiring | L+N+PE | |||
| Rated Input Voltage | 208/220/230/240Vac | |||
| Voltage Range | 110-300Vac | |||
| Frequency Range | 40Hz-70Hz | |||
| Power Factor | ≥0.98 | ≥0.99 | ||
| Inverted Output | ||||
| Rated Output Voltage | 208/220/230/240Vac | |||
| Voltage Accuracy | ±1% | |||
| Frequency Range | 50/60±6Hz(Turn into mains frequency if phase locked)/50/60Hz±0.1%(Constant Frequency Mode) | |||
| Overload | 102%-110%:30min;111%-130%:10min;131%-150%;30s;>150%:200ms | |||
| Power Factor | 0.9 | |||
| THDu | ≤2%@100% Linear Load;≤5%@100% Non-Linear Load | |||
| Switching Time | 0ms | |||
| Efficiency | ||||
| Inverter Mode | 90% | 92% | ||
| Battery | ||||
| Battery Type | VRLA | |||
| Charging Current | 1A; 5A for long run model, 1-12A (Settable) | |||
| Battery Voltage | 72VDC | 96VDC | 192-240VDC | |
| Communications | ||||
| Serial Port | RS232, USB, EPO (Optional) | RS232, USB, EPO | ||
| Expansion Slot | SNMP, Dry contact, RS485 (Optional) | |||
| Environment | ||||
| Altitude | Less than 1000m, power derating for altitude>1000m, details refer to IEC62040 | |||
| Temperature | 0-40℃ | |||
| Humidity | 20-90%(non-condensing) | |||
| Noise | <50dB@1m | |||
| Physical Size | ||||
| W*D*H(mm) | 190*400*598 | 190*398*320 | 190*400*702.5 | |
| Weight (kg) | 30.7 | 16.2 | 47.8 | 70.6 |
