SPECIFICATION
In rural and remote areas, where infrastructure is weak and power supply conditions are complex, the electricity grid capacity is insufficient, leading to issues such as line losses and inadequate voltage at power terminals. To address this problem, technical solutions such as increasing transformer capacity and retrofitting power grid lines can be implemented. However, the use of the Unified Power Flow Controller (UPFC) in rural power networks can enhance the load-bearing capacity of distribution substations, improve the stability of low-voltage distribution networks, optimize voltage distribution along distribution lines, and reduce voltage drops. This approach effectively resolves these challenges and proves to be more economically viable than traditional rural power network upgrades.

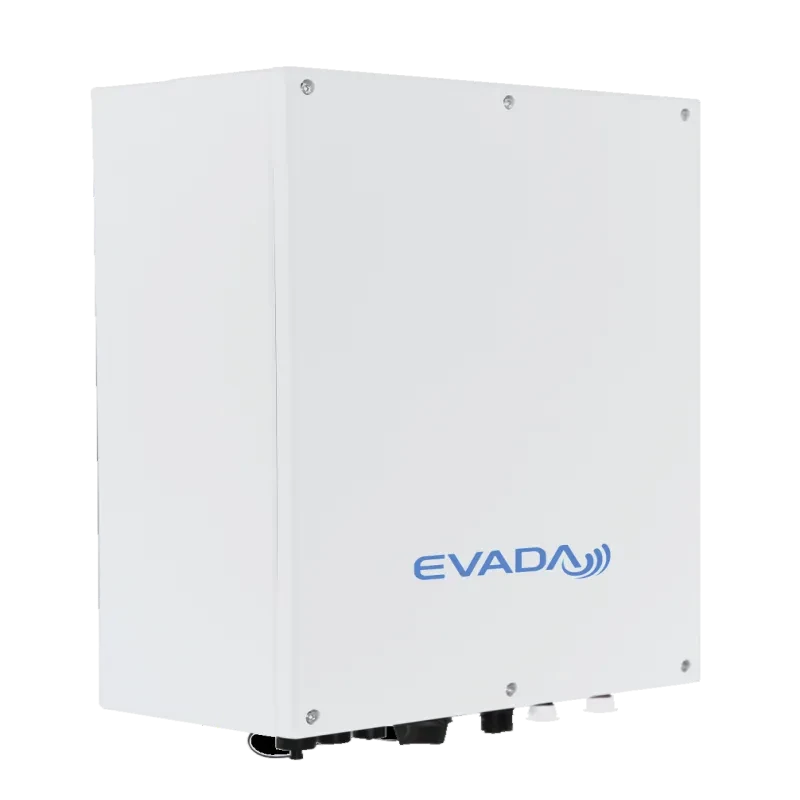

| Model | EV1-5000-BL |
| Rated Capacity | 5kVA |
| AC Input(Charging) | |
| Apparent Power(VA) | 5000 |
| Input Rated Voltage(V) | 220VAC |
| Input Voltoge Roge(V) | 110VAC~264V AC;load reduction if lower than 176V AC |
| Input Rated Frequency(Hz) | 50 |
| Input Frequency Range(Hz) | 45~55 |
| Input Rated Curent(A) | 25 |
| Battery | |
| Rated Voltage(V) | 48 |
| Voltage Range(V) | 42-58.8 |
| Battery Type | Lithium-ion (Ternary Lithium) |
| Battery Capacity(Ah) | 60 |
| Charging Rated Power(W) | 4800 |
| Maximum Charging Curent(A) | 100 |
| Maximum Discharging Cument(A) | 120 |
| Charging Curent Accurocy | 3% |
| AC Output (Discharge) | |
| Output Rated Power(W) | 5500 |
| Rated Voltage(V) | 220 |
| Rated Frequency(Hz) | 50 |
| Rated Curent(A) | 25 |
| Online 5witch Time(ms) | 10 |
| Output Current Distortion Thdi (%) | <5%@Thdu<1% |
| Valtoge Range(V) | 110VAC~264V AC |
| Frequency Range(Hz) | 45~55 |
| Output Curent DC Component(A) | <0.5%In |
| Output Power Factor | ±0.1~±1 |
| System Indicators | |
| Battery Inversion Effiency(%) | >95(Bi-directional) |
| Noise (dB) | <40 |
| Protection | |
| Electrical Isolation | AC-DC Isolation |
| Protective Function | The system features protection for overcurent,overvoltage,short cicuit.overtemperature,and inverter-BMS communication fault |
| Physical | |
| Protection Level | IP55 |
| Working Temperatue Range(C) | -40-55 |
| Cooling Method | Natural Heat Dissipation |
| Maximum Working Alitude(M) | 2000m |
| Humidity(%) | 93%RH@40℃ |
| Storoge Temperature(C) | -20~+60 |
| Dimensions(LxWxH)(mm) | 500mm(L)×370mm(W)×186mm |
| Weight(kg) | 22Kg |
| Installation | Pole Installaion |
