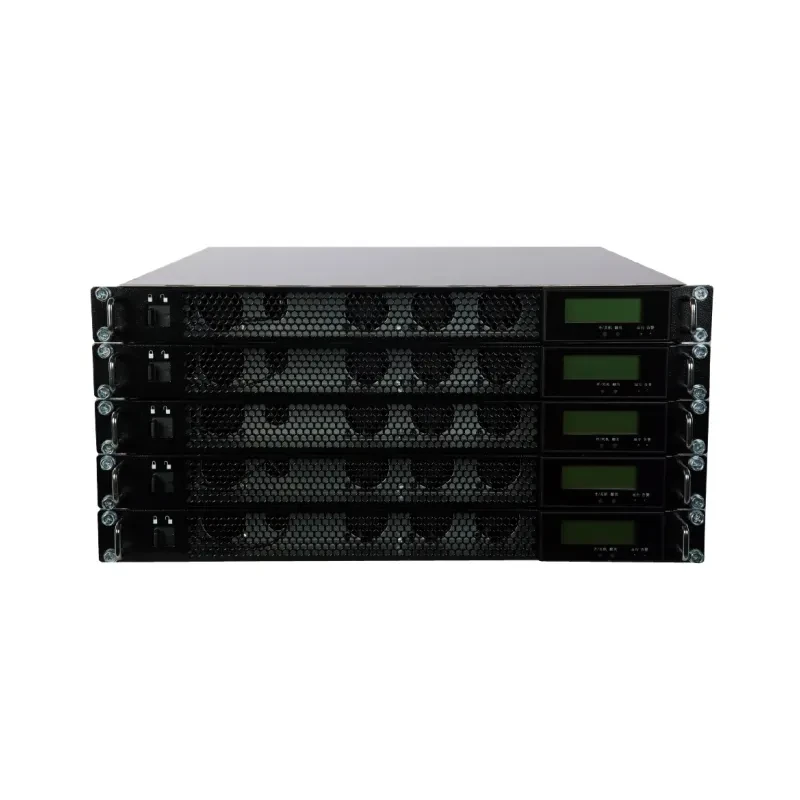

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION
XMI-HR Inverter adopts advanced control technology and is a standard 19 inch rack-mounted power supply product, which can be used in communication base stations, office, electric power, industrial control, security and other fields. The power system has the functions of battery over and under voltage protection, output over voltage protection, output under voltage alarm, output short circuit protection and over temperature protection. It also supports RS232 communication information reporting.
| Model | XMI30HR | XMI60HR | XMI90HR | XMI120HR | XMI150HR |
| Capacity | 3kVA | 6kVA | 9kVA | 12kVA | 15kVA |
| Input | |||||
| AC Voltage | Single phase 220VAC, 176-250VAC (configurable) | ||||
| DC Voltage | 48VDC | ||||
| Frequency | 50Hz ± 5% | ||||
| Reflected Wide-Band Noise Current | <10% | ||||
| Reflected Relative Psophometrically Weighted Noise Current | <2% | ||||
| Output | |||||
| Voltage | Single phase 220VAC | ||||
| Voltage Accuracy | ±1% (Inverter mode) | ||||
| Frequency | 50Hz ± 0.5% (Inverter mode） | ||||
| Efficiency (Inverter Mode) | ＞90% | ||||
| Power Factor | 0.8 | ||||
| THDu | <3%（Linear load under full load） | ||||
| Dynamic Response | ±3%（100% Load change） | ||||
| Battery | |||||
| Voltage | 48V | ||||
| Charging Current | 6A/0A | 12A/0A | 18A/0A | 24A/0A | 30A/0A |
