ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

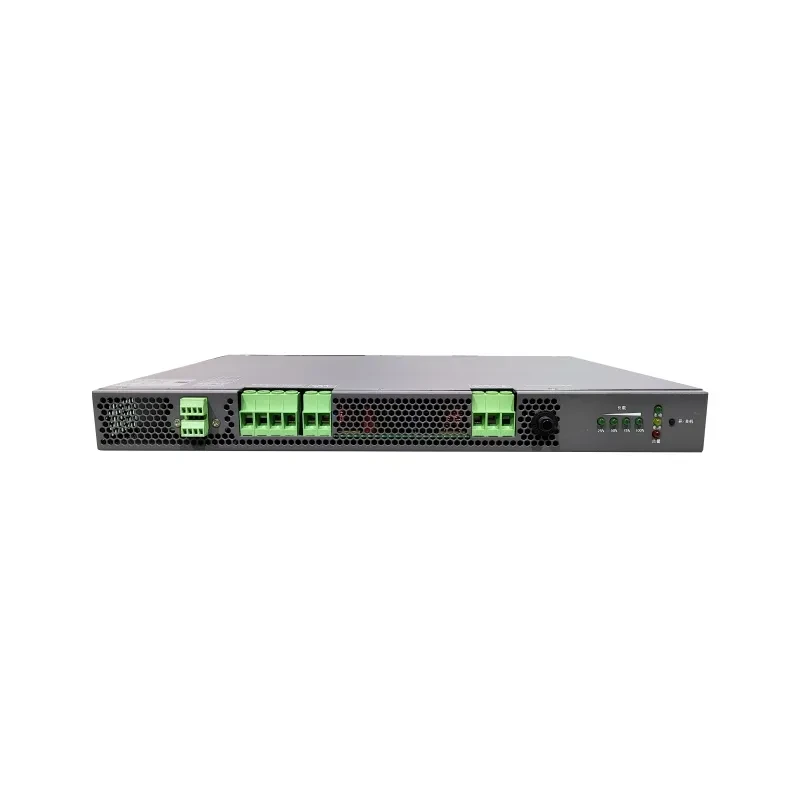

XMI-HR Inverter adopts advanced control technology and is a standard 19 inch rack-mounted power supply product, which can be used in communication base stations, office, electric power, industrial control, security and other fields. The power system has the functions of battery over and under voltage protection, output over voltage protection, output under voltage alarm, output short circuit protection and over temperature protection. It also supports RS232 communication information reporting.
| Model | XMI10HR-X | XMI20HR-X | XMI30HR-X | |
| Capacity | 1kVA | 2kVA | 3kVA | |
| Input | ||||
| AC Voltage | 176~250VAC(configurable) | |||
| Frequency | 50Hz±5% | |||
| Power Factor | ≥0.99 | |||
| Rated Voltage | 48VDC | |||
| Battery Voltage Range | 43~60VDC | |||
| AC Output | ||||
| Power Factor | 0.8 | |||
| Voltage | 220VAC±2%(inverter mode) | |||
| Efficiency | ≥90%(inverter mode) | |||
| Frequency | 49~51Hz | |||
| Waveform | Puresine wave(inverter mode) | |||
| THDu | ≤3%(linear load under full load) | |||
| Overload | 125% rated load 10 min; 150% rated load 1 min | |||
| Switching Time | ≤10ms | |||
| DC Output | ||||
| Voltage | 54.5~57.6VDC | |||
| Current | Optional rectifier module: 0A/6A/30A(6A charging)/30A | Optional rectifier module: 0A/10A/30A(6A charging)/30A | ||
| Protection | ||||
| Bypass Inverter | Low-voltage switching point | 176±3Vac | ||
| High-voltage switching point | 265±3Vac | |||
| Inverter Bypass | Low-voltage recovery point | 186±3Vac | ||
| High-voltage recovery point | 255±3Vac | |||
| Battery low-voltage warning point | 43±0.5Vdc | |||
| Battery undervoltage protection point | ≤40Vdc | |||
| Battery overvoltage protection point | ≥60Vdc | |||
| Battery overvoltage recovery point | ≥55Vdc | |||
| Output overcurrent protection | 100%~135%:protection after 10 mins | |||
| 125%~150%: protection after 1 min | ||||
| >150%: instant protection | ||||
| Output shortcircuit protection | Yes(short circuit is prohibited when grid power is connected) | |||
| Battery reverse protection | Yes(models with charging function prohibit reverse polarity connection) | |||
| Overheat protection | Yes(automatic recovery after fault condition is cleared) | |||
| Cooling method | Built-in fan cooling(intelligent speed control) | |||
| System | ||||
| Display | LCD, LED(optional) | |||
| Communication | RS485, dry contact | |||
| Physical | ||||
| W*D*H(mm) | 482*350*44 | |||
| Weight(kg) | 6.2 | |||
