ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

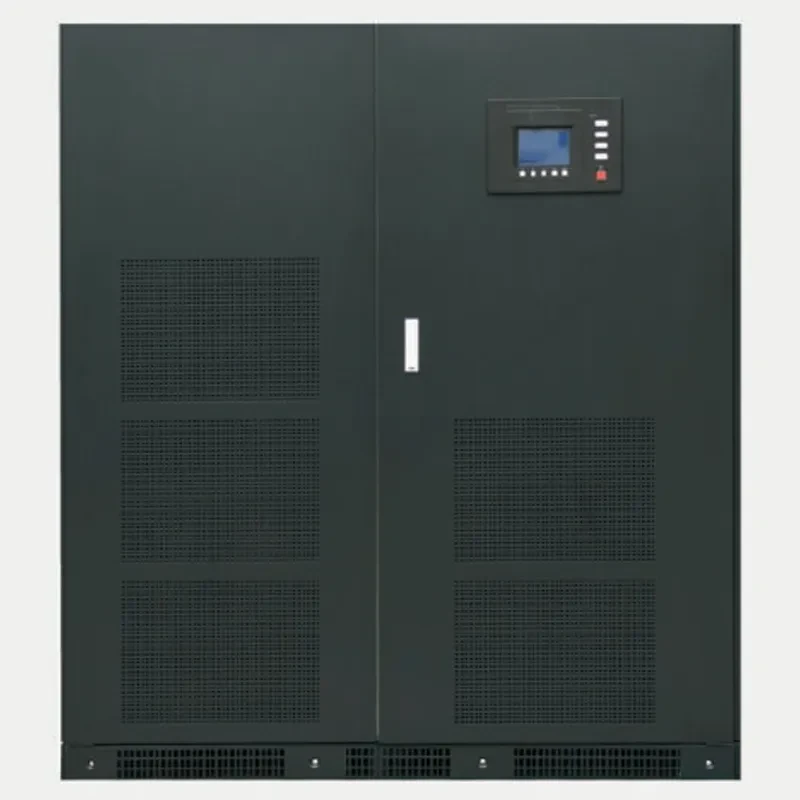

HQ33 500KVA-600KVA Industrial Backup Power Online UPS equipped with advanced features, including a switch mode power supply and a power backup system. Specifically crafted for industrial applications, the EVADA HQ33 UPS serves as both an industrial UPS power supply and a UPS with transformer, ensuring optimal performance and protection for critical equipment.
| Model | HQ335000L | HQ33600L |
| Capacity | 500kVA | 600kVA |
| Input | ||
| Related Voltage | 380/400/415VAC, 3 Phase+N+PE | |
| Voltage Range | ±25% | |
| Rated Frequency | 50/60Hz(auto-sensing) | |
| Frequency Range | 40~70Hz | |
| Bypass | ||
| Ralted Voltage | 380/400/415VAC | |
| Rated Frequency Range | ±10%(±5% configurable) | |
| Rated Frequency | 50/60Hz | |
| Inverter/Bypass Switch | 0ms | |
| Output | ||
| Power Factor | 0.9 | |
| Rated Voltage | 380/440/415VAC, 3 Phase+N+PE | |
| Phase Voltage | 220(200~244V configurable) | |
| Creat Factor | 3:1 | |
| THDu | <2% @100% linear load;<5% @100% non-linear load | |
| Voltage Accuracy | ±1% | |
| Transient Response | ±5%<10ms | |
| Overload | 125%,10min;150%,1min | |
| Efficiency | ≥93% @ 100% load | |
| Battery | ||
| Voltage | 456~504v (38-42 units configurable) no neutral wire | |
| System | ||
| Communication | RS232, RS485, optional: dry contact, SNMP | |
| Operating Temperature | -10~40℃ | |
| Display | LCD+LED | |
| Humidity | 0~95℃(non-condensing) | |
| Altitude | <1000m no derate,>1000m derating 1% 100m | |
| Noise | ≤65dB @ 1m | |
| Physical | ||
| W*D*H(mm) | 12P:2615*855*1900 | 2865*955*1900 |
| Weight(kg) | 12P:2850 | 3130 |
