ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

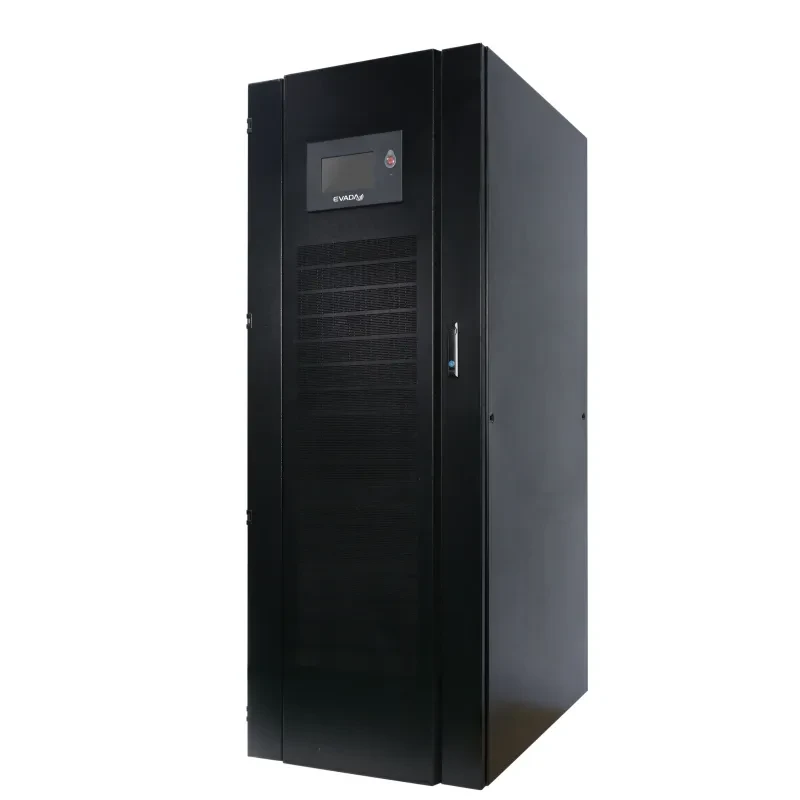

HQ33 40KVA-80KVA Industrial Backup Power Online UPS equipped with advanced features, including a switch mode power supplyand a power backup system. Specifically crafted for industrial applications, the EVADA HQ33 UPS serves as both an industrial UPS power supply and a UPS with transformer, ensuring optimal performance and protection for critical equipment.
| Model | HQ3310 | HQ3320 | HQ3330 | HQ3340 | HQ3360 | HQ3380 | HQ33100 | HQ33120 | HQ33160 | HQ33200 | HQ33250 | HQ33300 | HQ33400 | HQ33500 | HQ33600 |
| Capacity | 10kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA |
| Input | |||||||||||||||
| Rated Voltage | 380/400/415VAC, 3 Phase+N+PE | ||||||||||||||
| Voltage Range | ±25% | ||||||||||||||
| Rated Frequency | 50/60Hz (Auto-sensing) | ||||||||||||||
| Frequency Range | 40 ~ 70Hz | ||||||||||||||
| Output | |||||||||||||||
| Rated Voltage | 380/400/415VAC, 3 Phase+N+PE | ||||||||||||||
| Voltage Accuracy | ±1% | ||||||||||||||
| Phase Voltage | 220 (200 ~ 244V configurable) | ||||||||||||||
| Overload | 125%, 10 min；150%, 1 min | ||||||||||||||
| Power Factor | 0.9 | ||||||||||||||
| THDu | ≤2% @ (100% linear load)；≤5% @ (100% nonlinear load) | ||||||||||||||
| Crest Factor | 3:1 | ||||||||||||||
| Transient Response | ±5% <10ms | ||||||||||||||
| Efficiency | ≥93% @ 100% load | ||||||||||||||
| Bypass | |||||||||||||||
| Rated Voltage | 380/400/415VA | ||||||||||||||
| Rated Frequency Range | ±10%（±5% configurable） | ||||||||||||||
| Rated Frequency | 50/60Hz | ||||||||||||||
| Inverter/Bypass Switch | 0ms | ||||||||||||||
