ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

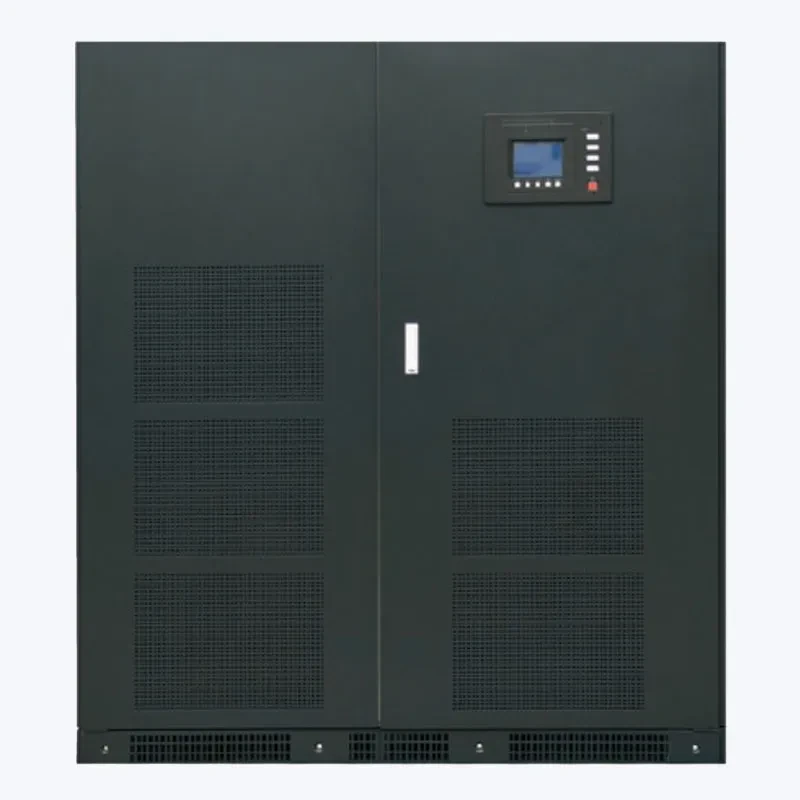

HQ33 200KVA-400KVA Industrial Backup Power Online UPS equipped with advanced features, including a switch mode power supplyand a power backup system. Specifically crafted for industrial applications, the EVADA HQ33 UPS serves as both an industrial UPS power supply and a UPS with transformer, ensuring optimal performance and protection for critical equipment.
| Model | HQ33200L | HQ33250L | HQ33300L | HQ33400L |
| Capacity | 200kVA | 250kVA | 300kVA | 400kVA |
| Input | ||||
| Related Voltage | 380/400/415VAC, 3 Phase+N+PE | |||
| Voltage Range | ±25% | |||
| Rated Frequency | 50/60Hz(auto-sensing) | |||
| Frequency Range | 40~70Hz | |||
| Bypass | ||||
| Ralted Voltage | 380/400/415VAC | |||
| Rated Frequency Range | ±10%(±5% configurable) | |||
| Rated Frequency | 50/60Hz | |||
| Inverter/Bypass Switch | 0ms | |||
| Output | ||||
| Power Factor | 0.9 | |||
| Rated Voltage | 380/440/415VAC, 3 Phase+N+PE | |||
| Phase Voltage | 220(200~244V configurable) | |||
| Creat Factor | 3:1 | |||
| THDu | <2% @100% linear load;<5% @100% non-linear load | |||
| Voltage Accuracy | ±1% | |||
| Transient Response | ±5%<10ms | |||
| Overload | 125%,10min;150%,1min | |||
| Efficiency | ≥93% @ 100% load | |||
| Battery | ||||
| Voltage | 360~408V (30-34 units configurable) no neutral wire | |||
| System | ||||
| Communication | RS232, RS485, optional: dry contact, SNMP | |||
| Operating Temperature | -10~40℃ | |||
| Display | LCD+LED | |||
| Humidity | 0~95℃(non-condensing) | |||
| Altitude | <1000m no derate,>1000m derating 1% 100m | |||
| Noise | ≤65dB @ 1m | |||
| Physical | ||||
| W*D*H(mm) | 6P:1245*855*1900 12P:1770*855*1900 | 6P:1640*855*1900 12P:2265*855*1900 | 6/12P:2265*855*1900 | |
| Weight(kg) | 6P:1075 12P:1685 | 6P:1630 12P:2290 | 6P:2105 12P:2500 | |
