ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

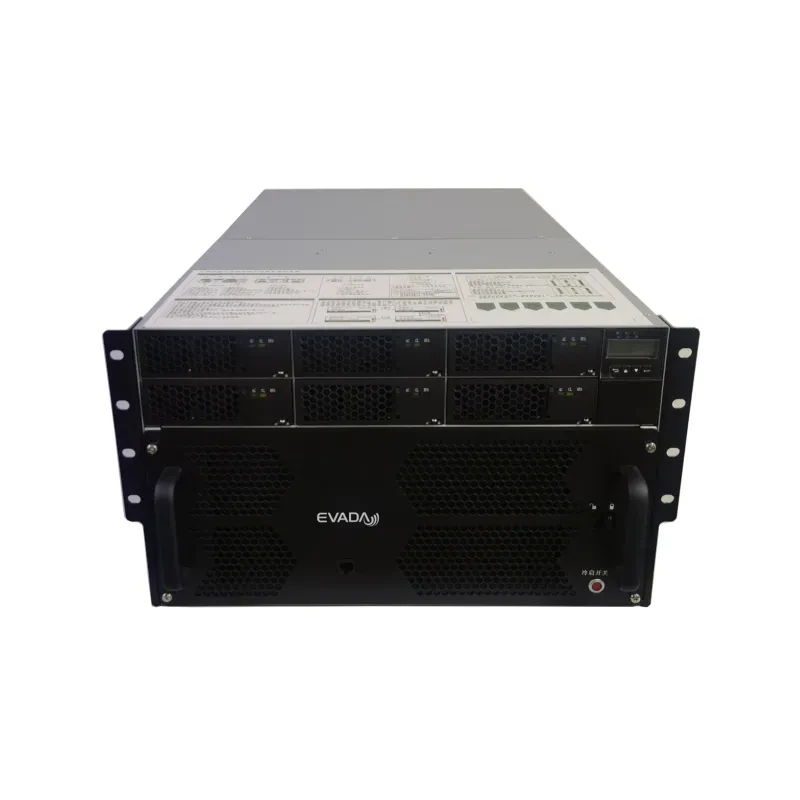

DPS-D is specially designed for standard 19-inch cabinets, with a uniform appearance design of 800mm deep and 440mm wide. It is suitable for IDC computer rooms, computer rooms of enterprises and institutions, and other places, providing uninterrupted high-voltage DC power supply for network equipment such as servers and routers.
DPS is small in size and can be directly installed inside the cabinet. With the front fixed ears and handles, it can easily realize the rapid deployment, installation, removal and replacement of DPS in the cabinet.
| Model | DPS-1106D | DPS-1110D | DPS-1112D |
| Capacity | 6kVA | 10kVA | 12kVA |
| Operating | Dual 220VAC inputs and 240VDC outputs or 1 220VAC output and 1 240VDC output | ||
| Input | |||
| Voltage | 1 Phase 220VAC | ||
| Voltage Range | 165～302VAC | ||
| Frequency Range | 40 ~ 70Hz | ||
| Power Factor | ≥0.99 | ||
| Output | |||
| Current | 10 ~ 40A | ||
| Voltage | Dual 240VDC outputs or 1 220VAC output and 1 240VDC output | ||
| Voltage Range | 200～300VDC | ||
| Adjustable Current Range | 10% ~ 110% (Continuously adjustable) | ||
| Voltage Accuracy | ≤0.5% | ||
| Efficiency | 94% | ||
| Current Sharing | ≦±3% | ||
| Battery Charging Current | 0.2C（Typical value） | ||
| Battery | |||
| Voltage | 240V | ||
| Battery Type | 10/15AH (2U)/20/25/30AH (4U) | 20/25/30AH（4U） | |
| Charging Time | 5 Hours | ||
| Charging Current | 3A ± 10% | 6A ± 10% | |
