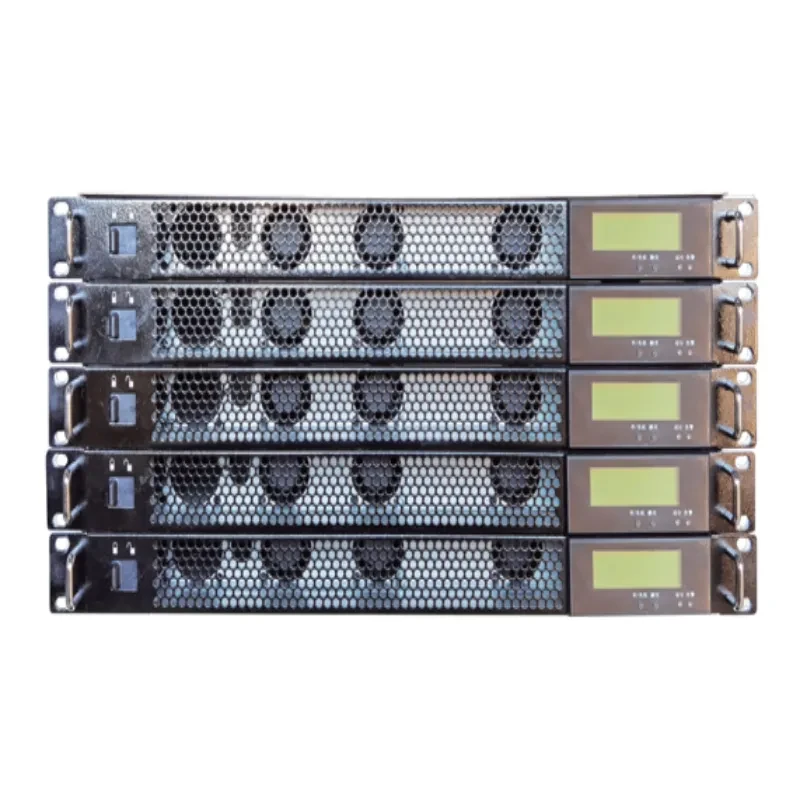

ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION
This power Inverter adopts advanced control technology and is a standard 19 inch rack-mounted power supply product, which can be used in communication base stations, office, electric power, industrial control, security and other fields. The power system has the functions of battery over and under voltage protection, output over voltage protection, output under voltage alarm, output short circuit protection and over temperature protection. It also supports RS232 communication information reporting.
| Model | XMI30DGR | XMI60DGR | XMI9ODGR | XMI120DGR | XMI150DGR |
| Rate Capacity | 3kVA | 6kVA | 9kVA | 12kVA | 15kVA |
| Input | |||||
| Voltage Range | 165~260Vas | ||||
| Frequency Range | 50±5%Hz | ||||
| Power Factor | ≥0.99 | ||||
| DC Input | |||||
| Rated Voltage | Default 240VDC (220VDC can be set) | ||||
| Voltage Range | 196~286VDC | ||||
| Battery Type | Lead acid battery | ||||
| AC Output | |||||
| Rated Voltage | 220Vac | ||||
| Voltage Range | 220±2%Vac | ||||
| Power Factor | 0.8 | ||||
| Rated Frequency | 50Hz | ||||
| Frequency Range | A9-51Hz | ||||
| Voltage Waveform Distortion | ≤3%(resistive load) | ||||
| Efficiency | ≥90% | ||||
| Overload Capacity | 105%<Load<125%:maintain for 10 minutes;125%≤Load<150%:maintain for 1 minute;Load≥150%:immediate protection | ||||
| Switching Time | |||||
| Mains--Inverter Switching Time | ≤10ms | ||||
| Protection Characteristics | |||||
| Mains Input Undervoltage Switching | ≤176Vac | ||||
| Output overvoltage protection | ≥245Vac | ||||
| Battery Low Voltage Alarm | <200Nac | ||||
| Output short circuit protection | Have | ||||
| Battery reverse connection protection | Have | ||||
| Communication | |||||
| Communication interface | RS485、Dry contact | ||||
| Environment | |||||
| Working altitude | The altitude shall not exceed 1000m,and the derating shall be more than 1000m.Refer to IEC62040 | ||||
| working temperature | -5~40°℃ | ||||
| Working relative humidity | 0~95%(no condensation) | ||||
| Working noise | <65dB @1m | ||||
| Mechanical Index | |||||
| Wide(mm) | 482.6 | 482.6 | 482.6 | 482.6 | 482.6 |
| Deep(mm) | 350 | 350 | 350 | 350 | 350 |
| High (mm) | 44.5(1U) | 88(2U) | 132(3U) | 176(4U) | 220(5U) |
| Weight(kg) | 5.4 | 16.5 | 24 | 29.4 | 34.8 |
