ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

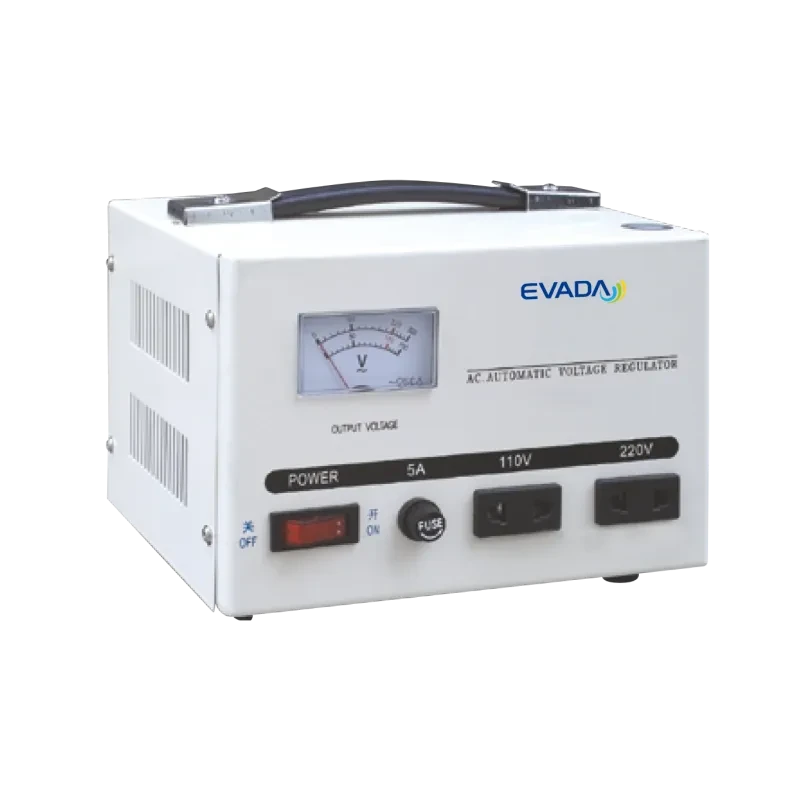

EVADA STB automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and servomotors as well. It has excellent features, such as small waveform distortion, high efficiency, high power factor, free from the effect or frequency variation of supply.
Input Voltage | 150V-250V(110V-250V) |
| Output Voltage | 220±3%，110±3% |
| Frequency | 50Hz/60Hz |
| Response Time | 1s (against 10% input voltage deviation) |
| Efficiency | >90% |
| Ambient Temperature | -10℃~±40℃ |
| Relative Humidity | <90% |
| Waveform distortion | Non-lack fidelity waveform |
| Power factor cos∅ | 0.8 |
| Insulation resistance | >5MΩ |
