ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

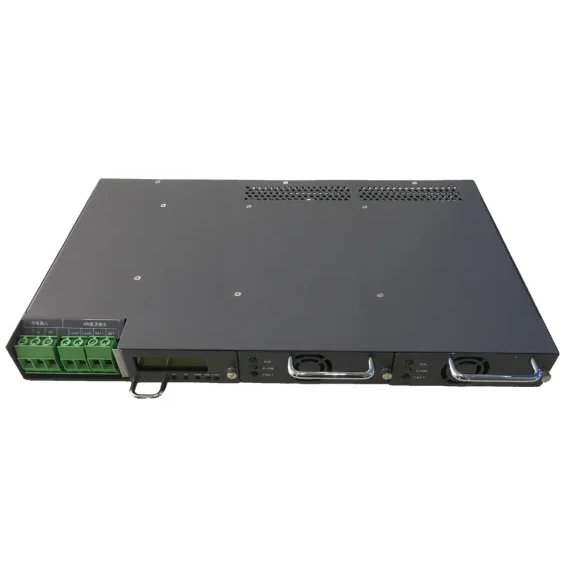

XMI-HR Series power Inverter adopts advanced control technology and is a standard 19 inch rack-mounted power supply product, which can be used in communication base stations, office, electric power, industrial control, security and other fields. The power system has the functions of battery over and under voltage protection, output over voltage protection, output under voltage alarm, output short circuit protection and over temperature protection. It also supports RS232 communication information reporting.
| Model | E4860 | |||
| Capacity | 30-1000A | |||
| Input | ||||
| Rated Voltage | 220VAC | |||
| Voltage Range | Start: 140-290VAC, running: 90-290VAC | |||
| Rated Frequency | 43 - 67Hz (Typical value is 50/60Hz) | |||
| Power Factor | ≥0.99 | |||
| Output | ||||
| Rated Voltage | -53.5VDC | |||
| Voltage Range | -42 ~ -58VDC | |||
| Voltage Stabilizing Accuracy | ≤±1% | |||
| Single Module Capacity | 30 or 50A | |||
| Current | 30 ~ 1000A | |||
| Output Ripple and Noise | ≤200mVp-p | |||
| Power On Output Delay | 3 ~ 8s | |||
| Broadband Noise Voltage | ≤100mV at 3.4 - 150 KHz ≤30mV at 150 - 30 MHz | |||
| Telephone Weight Noise Voltage | ≤2mV | |||
| Dynamic Response | Overshoot amplitude: △V: ≤5%Vo ; Recovery time: △t: ≤500µS | |||
| Current Sharing Imbalance | ≤5% | |||
| Temperature Coefficient | ±0.02%/℃ | |||
| Efficiency | ≥92% at 220VAC rated load, ≥87% at 110VAC rated load | |||
| Efficiency | ||||
| Inverter Mode | 95% | |||
| ECO Mode | 99% | |||
