ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

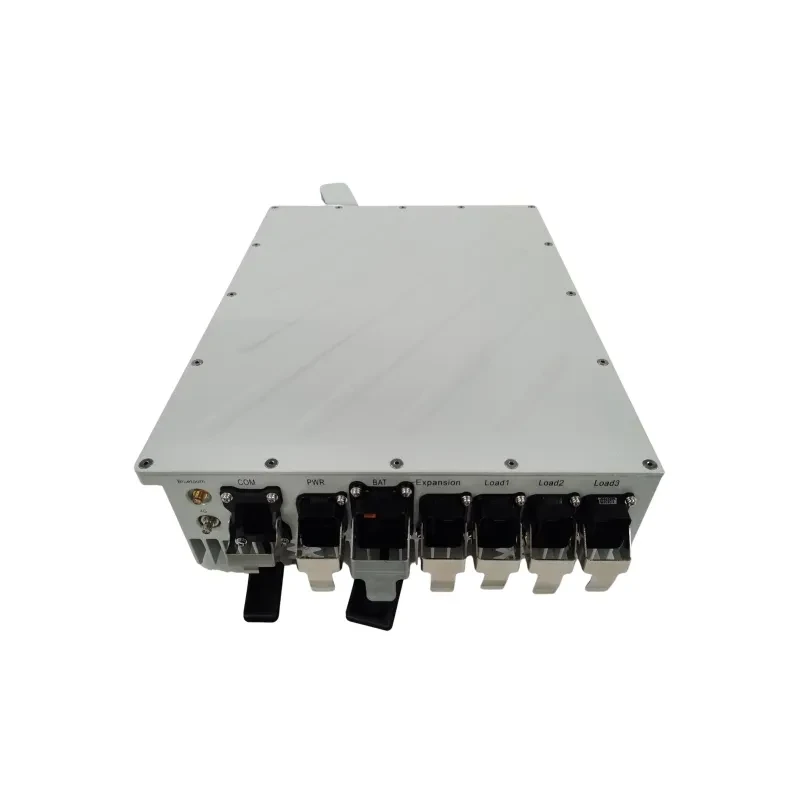

The HW series 5G integrated power supply adopts active power factor compensation technology, full-bridge soft development technology, and perfect battery management. It can be used in 5G base stations, small programmable switches, microwave communication power supply, etc.
| Model | HW20E-L50DC48 | HW30E-L50DC48 |
| Capacity | 2kW | 3kW |
| Input | ||
| Voltage | 176～264VAC | |
| Frequency | 45～55Hz | |
| Power Factor | ＞0.98（30% rated load）；＞99%（100% rated load） | |
| Output | ||
| Voltage | －43VDC ～－58VDC | |
| Voltage Regulation Accuracy | ＜±0.6% | |
| Efficiency | ＞96.5%（50% rated load）；＞96%（100% rated load） | |
| Peak To Peak Noise Voltage | ≤200mV | |
| Source Effect | ≤±0.1% | |
| Load Effect | ≤±0.5% | |
| Battery | ||
| Overvoltage Protection | ≥120% of rated voltage | |
| Undervoltage Protection | ≤80% of rated voltage | |
| Overcurrent Protection | The current limiting range of output current can be adjusted between 20% and 110% of its nominal value | |
| Voltage | 48V | |
