ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

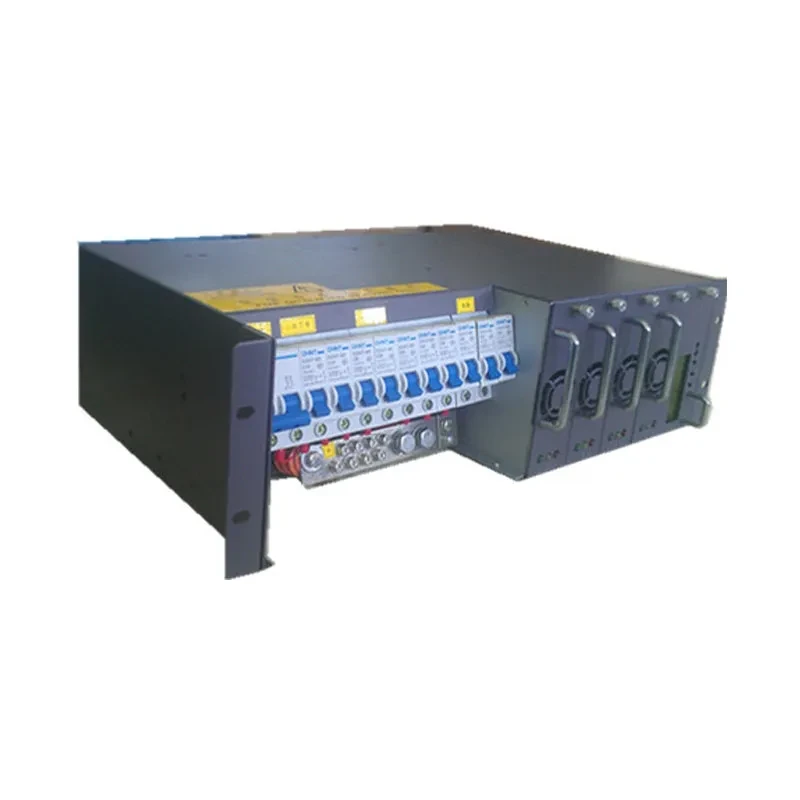

E48120 consists of a power distribution frame, a monitoring module and a rectifier module. The whole machine has stable performance, strong practicality, and can be operated by background software.
| odel | 48120 | |||
| Capacity | 30-1000A | |||
| Input | ||||
| Rated Voltage | 220VAC | |||
| Voltage Range | Start: 140-290VAC, running: 90-290VAC | |||
| Rated Frequency | 43 - 67Hz (Typical value is 50/60Hz) | |||
| Power Factor | ≥0.99 | |||
| Output | ||||
| Rated Voltage | -53.5VDC | |||
| Voltage Range | -42 ~ -58VDC | |||
| Voltage Stabilizing Accuracy | ≤±1% | |||
| Single Module Capacity | 30 or 50A | |||
| Current | 30 ~ 1000A | |||
| Output Ripple and Noise | ≤200mVp-p | |||
| Power On Output Delay | 3 ~ 8s | |||
| Broadband Noise Voltage | ≤100mV at 3.4 - 150 KHz ≤30mV at 150 - 30 MHz | |||
| Telephone Weight Noise Voltage | ≤2mV | |||
| Dynamic Response | Overshoot amplitude: △V: ≤5%Vo ; Recovery time: △t: ≤500µS | |||
| Current Sharing Imbalance | ≤5% | |||
| Temperature Coefficient | ±0.02%/℃ | |||
| Efficiency | ≥92% at 220VAC rated load, ≥87% at 110VAC rated load | |||
| Efficiency | ||||
| Inverter Mode | 95% | |||
| ECO Mode | 99% | |||
