ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

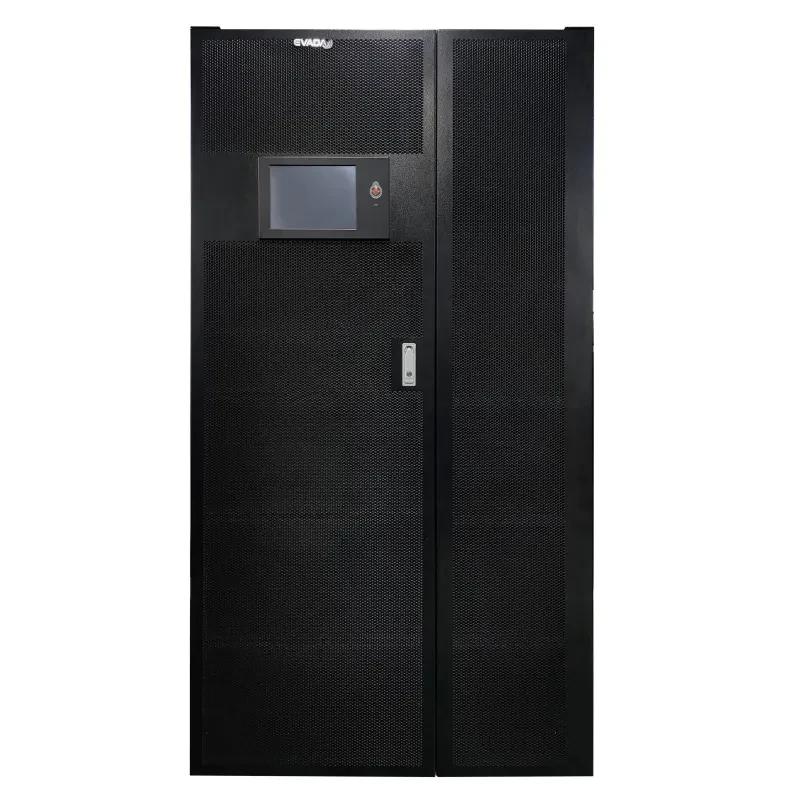

DTH33 500kVA Online UPS equipped with advanced UPS lithium battery technology, it’s an uninterruptible power supplies with a robust 500kVA capacity (also available in 200kVA/300kVA/400kVA/600kVA), this high frequency UPS incorporating three phase UPS system ensures reliable and continuous power for different requirements.
| Model | DTH33-200KL | DTH33-300KL | DTH33-400KL | DTH33-500KL | DTH33-600KL |
| Capacity | 200kVA | 300kVA | 400kVA | 500kVA | 600kVA |
| Input | |||||
| Rated Voltage | (3 Phase+N+PE) 380/400/415VAC | ||||
| Voltage Range | 304～478VAC (line voltage) full load; 208~304VAC (line voltage) | ||||
| Frequency Range | 50/60Hz (range: 40Hz ~ 70Hz) | ||||
| Power Factor | ≥0.99 | ||||
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | ||||
| Output | |||||
| Voltage | 380/400/415VAC (3 Phase+N) | ||||
| Voltage Accuracy | ±1% | ||||
| Frequency Range | Synchronization Range: ±0.5Hz, ±1Hz, ±2Hz, ±3Hz（configurable） Battery Mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | ||||
| Overload | 105%~110%, 60min; 110%~125%, 10min; 125%~150%, 1min; ＞150%, 0.2sec | ||||
| Power Factor | 1 | ||||
| THDu | ≤2% @ (100% linear load)；≤4% @ (100% nonlinear load) | ||||
| Crest Factor | 3:1(Maximum) | ||||
| Switching Time | 0ms | ||||
| Efficiency | |||||
| Inverter Mode | 96% | ||||
