ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

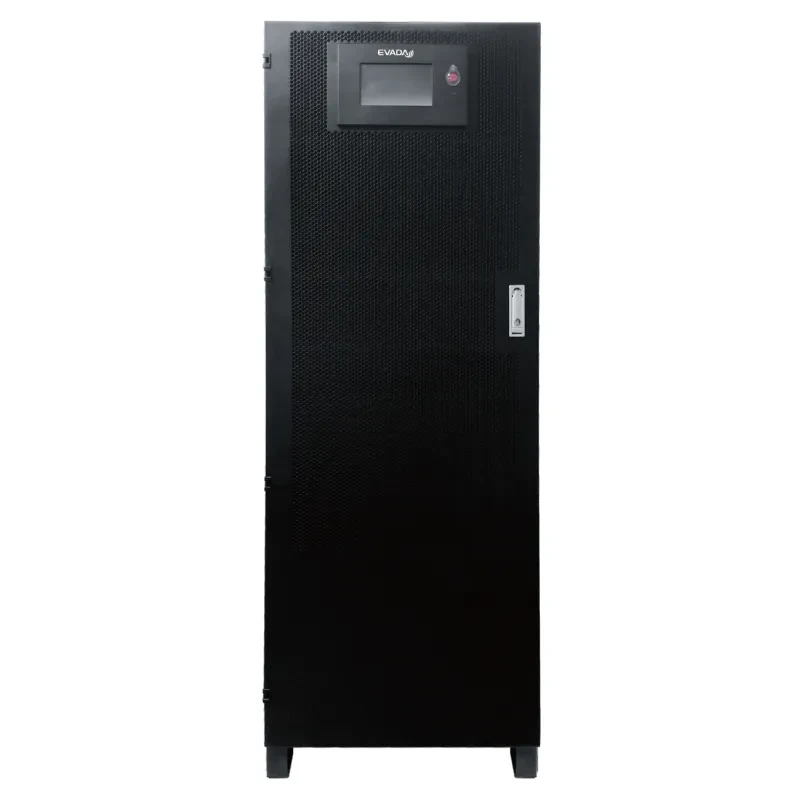

DTH33 125kVA-150KVA Online UPS is a li ion UPS packed with advanced technology that ensures extended backup times and minimal maintenance. Versatile and adaptable, the EVADA DTH33 is a 125kVA UPS (also available in 150kVA), it supports both 50Hz and 60Hz frequencies, catering to diverse power environments.
| Model | DTH33-125KL | DTH33-150KL |
| Capacity | 125kVA | 150kVA |
| Input | ||
| Rated Voltage | (3 Phase+N+PE) 380/400/415VAC | |
| Voltage Range | 304～478VAC (line voltage) full load; 208~304VAC (line voltage) | |
| Frequency Range | 50/60Hz (range: 40Hz ~ 70Hz) | |
| Power Factor | ≥0.99 | |
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | |
| Output | ||
| Voltage | 380/400/415VAC (3 Phase+N) | |
| Voltage Accuracy | ±1% | |
| Frequency Range | Synchronization Range: ±0.5Hz, ±1Hz, ±2Hz, ±3Hz（configurable） Battery Mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | |
| Overload | 105%~110%, 60min; 110%~125%, 10min; 125%~150%, 1min; ＞150%, 0.2sec | |
| Power Factor | 1 | |
| THDu | ≤2% @ (100% linear load)；≤4% @ (100% nonlinear load) | |
| Crest Factor | 3:1(Maximum) | |
| Switching Time | 0ms | |
| Efficiency | ||
| Inverter Mode | 96% | |
