SPECIFICATION

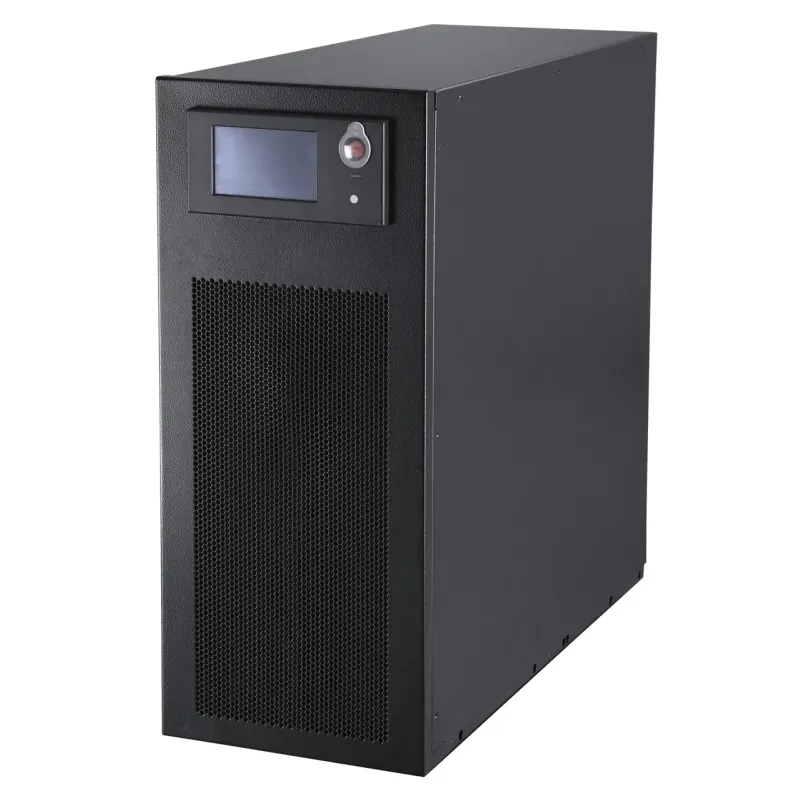

DTH33 10KVA-40KVA Three Phase Online Tower UPS is a reliable 3 Phase power supplies. With an uninterruptible power system and the multi switch UPS design enhances the flexibility. The EVADA DTH33 Three Phase Online Tower UPS provides dependable 15kVA UPS support (also including 10kVA/20kVA/25kVA), it’s ideal for industries requiring an unlimited power supply.
| Model | DTH33-10KL | DTH33-10KS | DTH33-15KL | DTH33-20KL | DTH33-20KS | DTH33-25KL | DTH33-30KL | DTH33-30KS | DTH33-40KS | |
| Capacity | 10kVA | 10kVA | 15kVA | 20kVA | 20kVA | 25kVA | 30kVA | 30kVA | 40kVA | |
| Input | ||||||||||
| Rated Voltage | (3 phase+N+PE) 380/400/415VAC | |||||||||
| Voltage Range | 305~477VAC | |||||||||
| Frequency Range | 40~70Hz | |||||||||
| Power Factor | ≥0.99@100% load | |||||||||
| THDi | <3%(100% linear load);<5%(100% nonlinear load) | |||||||||
| Output | ||||||||||
| Voltage | 380/400/415VAC(3 Phase+N) | |||||||||
| Voltage Accuracy | ±1% | |||||||||
| THDu | ≤2%(100% linear load),≤4%(100% nonlinear load) | |||||||||
| Power Factor | 1.0 | 0.9(optional 1.0) | 1.0 | |||||||
| Frequency Range | Synchronization Range | Default: ±2Hz;±0.5Hz,±1Hz,±3Hz(configurable) | ||||||||
| Battery Mode | 50Hz±0.1Hz or 60Hz±0.1Hz | |||||||||
| Overload | <105%,long run;105%~110%,60min;110~125%,10min;>125~150%,1min;>150%,0.2s | |||||||||
| Creat Factor | 3:1 | |||||||||
| Switching Time | 0ms | |||||||||
| Efficiency | ||||||||||
| Inverter Mode | 95% | |||||||||
| ECO Mode | 99% | |||||||||
| Battery | ||||||||||
| Voltage | KL:±192VDC,±180~±264V(30~44 units configurable) with neutral wire KS:10~30kVA,allowing up to 60 units/2 sets 40kVA: allowing up to 80 units/2 sets | |||||||||
| System | ||||||||||
| Display | 5" LCD touch screen | 7" LCD touch screen | ||||||||
| Communication | RS232, RS485, dry contact, intelligent slot | |||||||||
| Environment | ||||||||||
| Operating Temperature | 0~40℃(battery life will be shorten when temperature >25℃) | |||||||||
| Humidity | 0~95% (non-condensing) | |||||||||
| Altitude | 1000m no derate, >1000m derate 1% per 100m | |||||||||
| Noise | ≤60dB (A)@1m | |||||||||
| Protection Class | IP20 | |||||||||
| Physical | ||||||||||
| W*D*H(mm) | 280*685*725 | 400*686*1100 | 280*685*725 | 280*685*725 | 400*686*1100 | 280*685*725 | 280*685*725 | 400*686*1100 | 425*780*1600 | |
| Weight(kg) | 45 | 55 | 45 | 45 | 55 | 45 | 45 | 55 | 128 | |
