ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

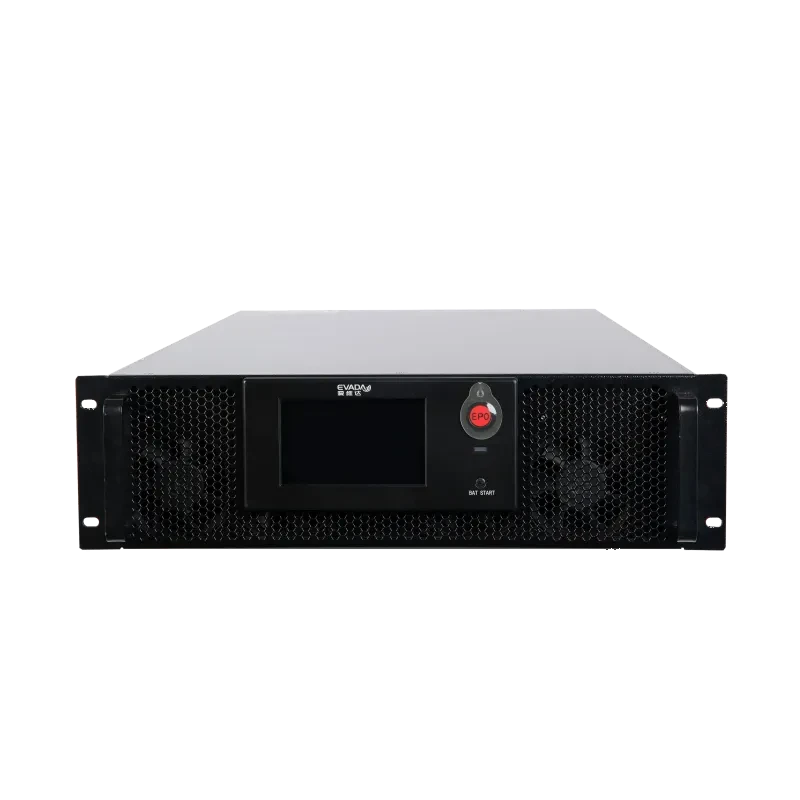

HP-GRL 10KVA-30KVA Online Rack Mount UPS features advanced lithium UPS technology, this 3 phase rack mount UPS ensures continuous power, safeguarding critical systems. Its a 3 phase input single phase output UPS (also available for 3 phase input 3 phase output), offers versatility and compatibility. Tailored for rack configurations, the EVADA HP-GRL optimizes space with its UPS power supply rack mount capability. This solution integrates advanced 3-phase rack mount UPS technology, lithium UPS innovation, and dependable UPS power backup.
| Model | HP1000GRL | HP1500GRL | HP2000GRL | HP2500GRL | HP3000GRL |
| Capacity | 10kVA | 15kVA | 20kVA | 25kVA | 30kVA |
| Input | |||||
| Rated Voltage | (3 Phase+N+PE) 380/400/415VAC | ||||
| Voltage Range | 305～477VAC | ||||
| Frequency Range | 40 ~ 70Hz | ||||
| Power Factor | ≥0.99 @ 100% load；≥0.98 @ 50% load | ||||
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | ||||
| Output | |||||
| Voltage | 380/220VAC | 380VAC | |||
| Voltage Accuracy | ±1% | ||||
| Frequency Range | SynchronizationRange: Default: ±2Hz；±0.5Hz, ±1Hz, ±3Hz（configurable） Battery Mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | ||||
| Overload | ＜105%, long run; 105%~110%, 60min; 110%~125%, 10min; ＞125%~150%, 1min; ＞150%, 0.2sec | ||||
| Power Factor | 1 | 0.8 | |||
| THDu | ≤2% @ (100% linear load)；≤4% @ (100% nonlinear load) | ||||
| Crest Factor | 3:1 | ||||
| Switching Time | 0ms | ||||
| Efficiency | |||||
| Inverter Mode | 95% | ||||
| ECO Mode | 99% | ||||
| Battery | |||||
| Voltage | Default: ±192VDC, 360~528V (30~44 units configurable) with neutral wire | ||||
| System | |||||
| Display | 5" LCD touch screen | ||||
| Communication | RS232, RS485, smart card slot | ||||
| Environment | |||||
| Operating Temperature | 0~40℃ (battery life will be shorten when temperature > 25℃) | ||||
| Humidity | 0~95% (non-condensing) | ||||
| Altitude | 1000m no derate, > 1000m derate 1% per 100m | ||||
| Noise | ≤60dB (A) @ 1m | ||||
| Protection Class | IP20 | ||||
| Physical | |||||
| W*D*H(mm) | 482.6*735*130 (3U); 482.6*580*175 (4U) | ||||
| Weight(kg) | 34 (3U/4U) | ||||
