ABOUT HQ-MR ONLINE RACKMOUNT MODULAR UPS
SPECIFICATION

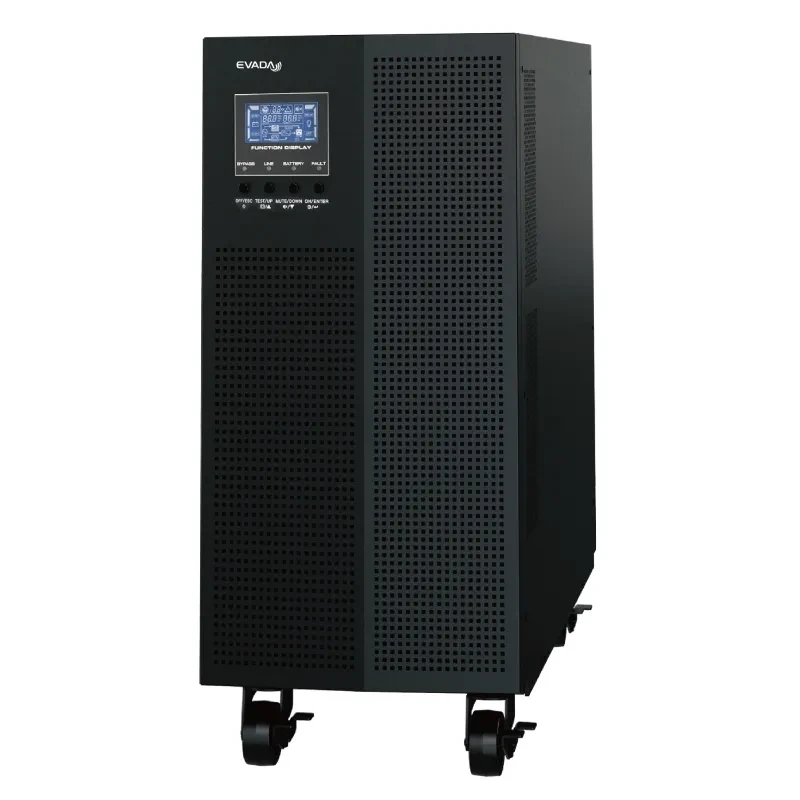

DTH31 10KVA-20KVA 3 Phase In 1 Phase Out Online UPS, an exceptional 3 Phase In 1 Phase Out Online UPS with unit power supply capabilities. This high performance UPS, featuring a 3 Phase In 1 Phase Out configuration, it's perfect for diverse applications. It’s a UPS with external batteries and also a UPS with wheels, it guarantees not just dependable power but also effortless mobility.
| Model | DTH31-10KL | DTH31-15KL | DTH31-20KL |
| Capacity | 10kVA | 15kVA | 20kVA |
| Input | |||
| Rated Voltage | 380VAC 3 Phase+N | ||
| Voltage Range | 110～300VAC | ||
| Frequency Range | 46Hz~54Hz @ 50Hz system; 56Hz~64Hz @ 60Hz system | ||
| Power Factor | ≥0.99 @ 100% load | ||
| THDi | ＜3％ (100% linear load）; ＜5％ (100% nonlinear load） | ||
| Output | |||
| Voltage | 208/220/230/240VAC | ||
| Voltage Accuracy | ±1% | ||
| Frequency Range | SynchronizationRange: 46Hz~54Hz @ 50Hz or 56Hz~64Hz Battery Mode: 50Hz ± 0.1Hz or 60Hz ± 0.1Hz | ||
| Mains Power | 100%~110%, 10min; 110%~130%, 1min; ＞130%, 1sec | ||
| Battery Mode | 100%~110%, 30sec; 110%~130%, 10sec; ＞130%, 1sec | ||
| Power Factor | 0.8 (optional 0.9) | ||
| THDu | ≤2% @ (100% linear load)；≤5% @ (100% nonlinear load) | ||
| Crest Factor | 3:1 | ||
| Switching Time | 0ms | ||
| Efficiency | |||
| Inverter Mode | 92% | 93% | |
