Tebechop 4000

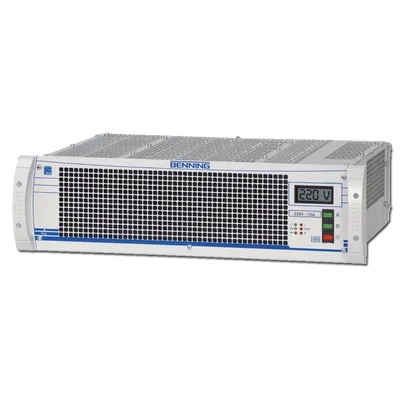

Convection Cooled Rectifier Systems – TEBECHOP 4000

The TEBECHOP 4000 rectifier range from BENNING, the leading global power supply manufacturer, provides a robust, modular rectifier system that is specifically designed for use under harsh environmental conditions (eg dust, acid, etc.). The convection cooling employed by these modules ideally suits the adverse conditions found in industrial environments, such as the petrochemical industry, energy distribution, automation technology and highways.


General Features

  • switched-mode rectifier for harsh industrial environments
  • power of the module: 4 kW
  • wide-range input
  • 185 V to 264 V
  • output voltages
  • 24 V, 48 V, 60 V, 110 V, 220 V

Maximum Availability

  • convection cooled
  • n+1 redundancy
  • stand alone modules
  • extensive signalling and monitoring functions
  • different operating modes
  • available temperature-controlled charging battery
  • availability test / battery circuit test galvanically isolated

Highest Economic Efficiency

  • low residual ripple at rectifier output
  • low THD (total harmonic distortion)
  • low volume and weight
  • suitable for lead and NiCd batterie senergy-efficient
  • energy-efficient
  • easy adaptation of system power
  • hot plug
