Three-phase 19" inverters

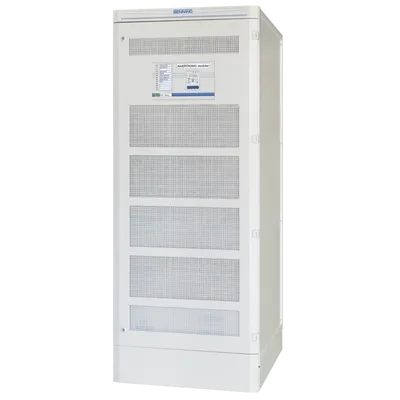

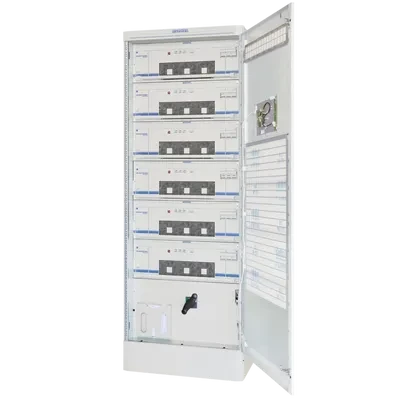

Modular Three Phase Inverter System Range INVERTRONIC modular

More and more mission critical loads in information, telecommunication and industrial applications demand continuous power protection and availability in the event of mains failure and reasonable power quality in the event of critical mains conditions. On the public network, major loads as well as lightning strikes, generate dynamic over voltages, under voltages, sags / brownouts and transients.


General Features

  • three phase
  • IGBT inverters
  • use of existing battery & rectifier infrastructure
  • power range: 10 kVA to 180 kVA
  • input voltages
  • 48 V, 110 V, 220 V
  • output voltages
  • 120/208 V +N ± 5 % adjustable (10 kVA module)
  • 230/400 V +N ± 5 % adjustable
  • 19“ module
  • compact, modular, fail-safe
  • circuit design
  • Digital controller

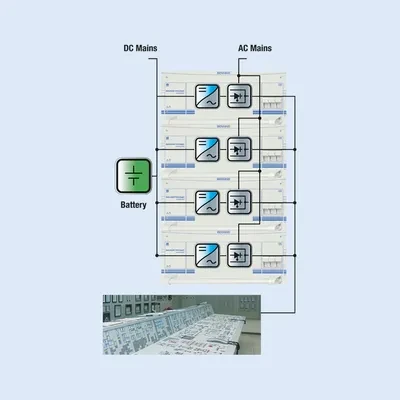

  • block diagram of the modular construction of INVERTRONIC modular inverter systems

Maximum Availability

  • n+1 redundancy
  • stand-alone modules
  • extensive signalling and monitoring functions
  • static bypass switch
  • service bypass
  • high quality of output power (parameters)
  • galvanically isolated

Highest Economic Efficiency

  • energy-efficient
  • easy adaptation of system power
  • low volume and weight
  • hot Plug
  • plug and play
